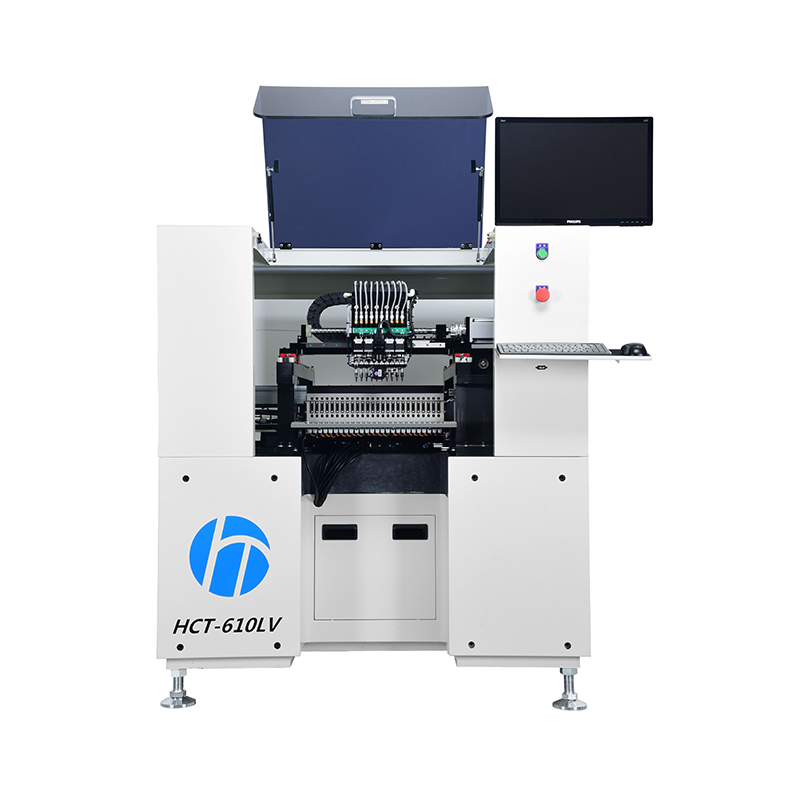

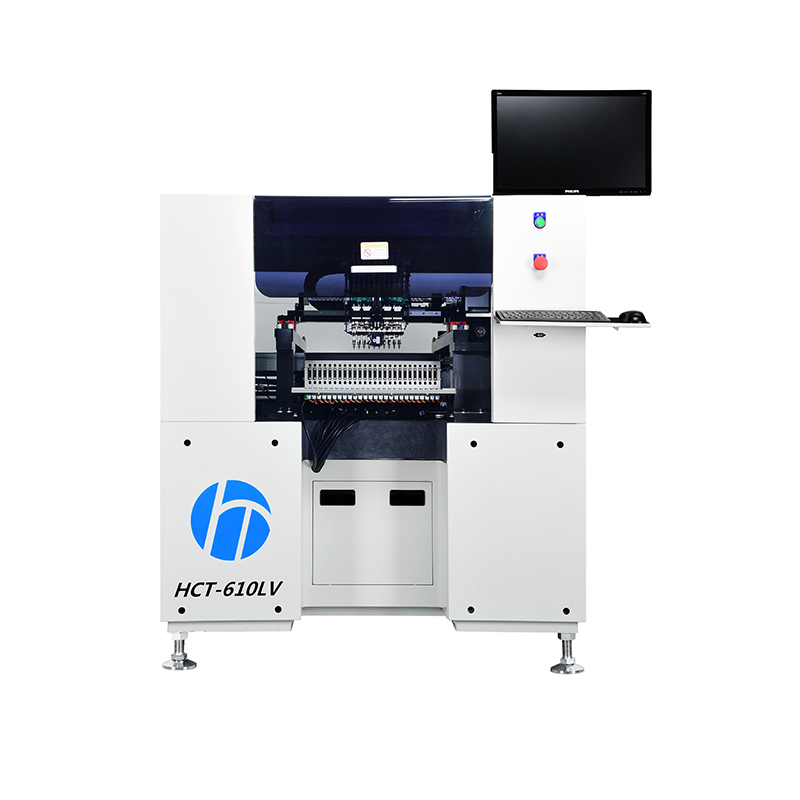

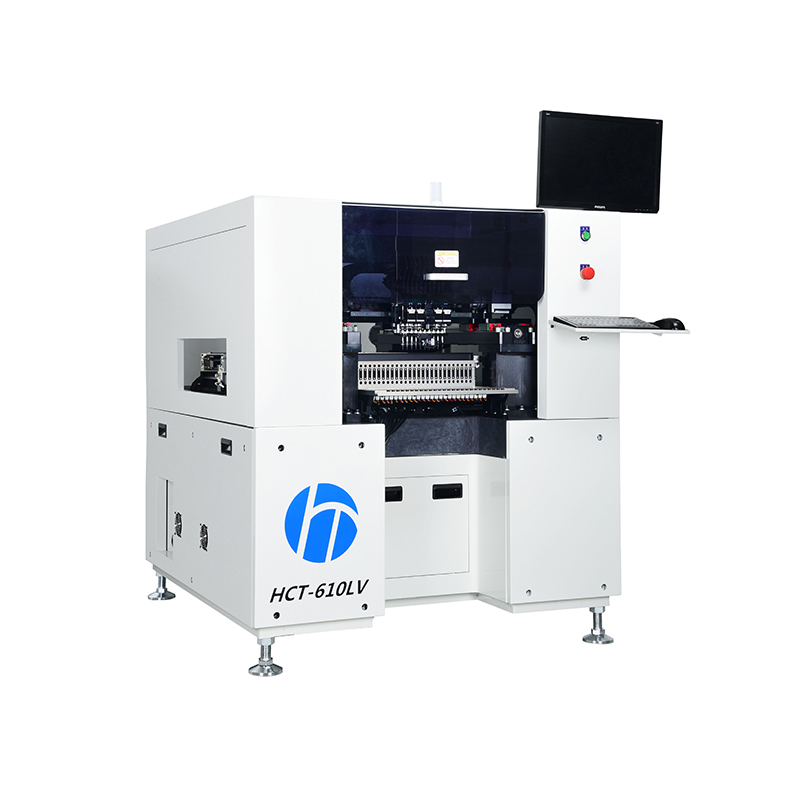

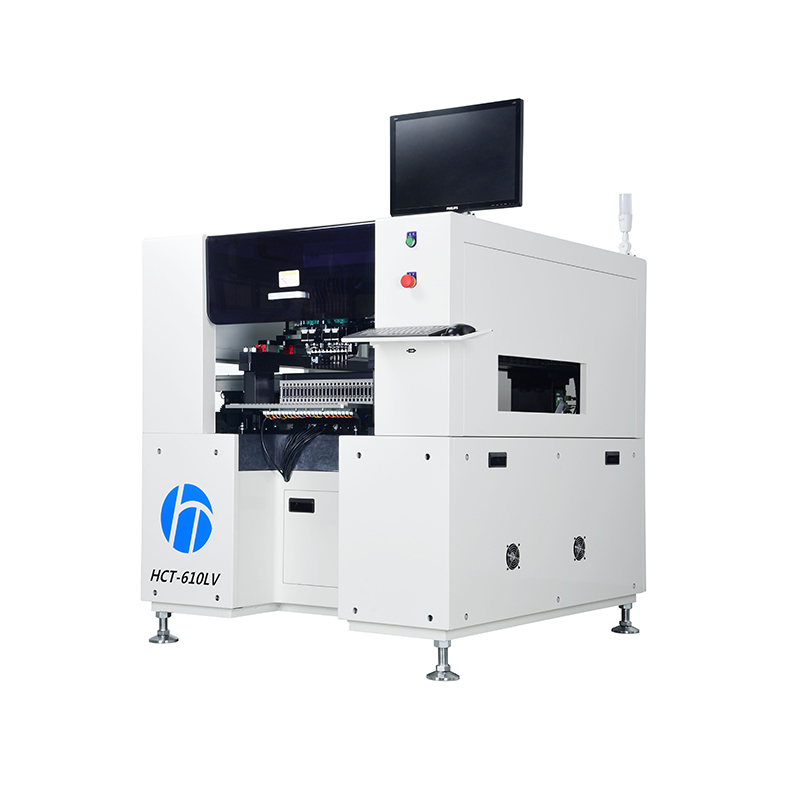

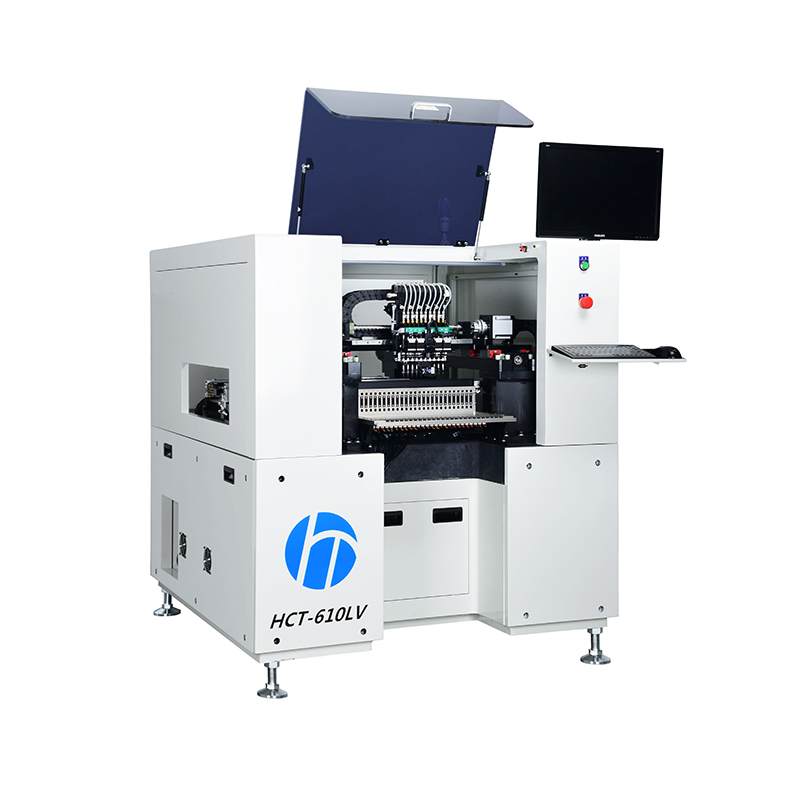

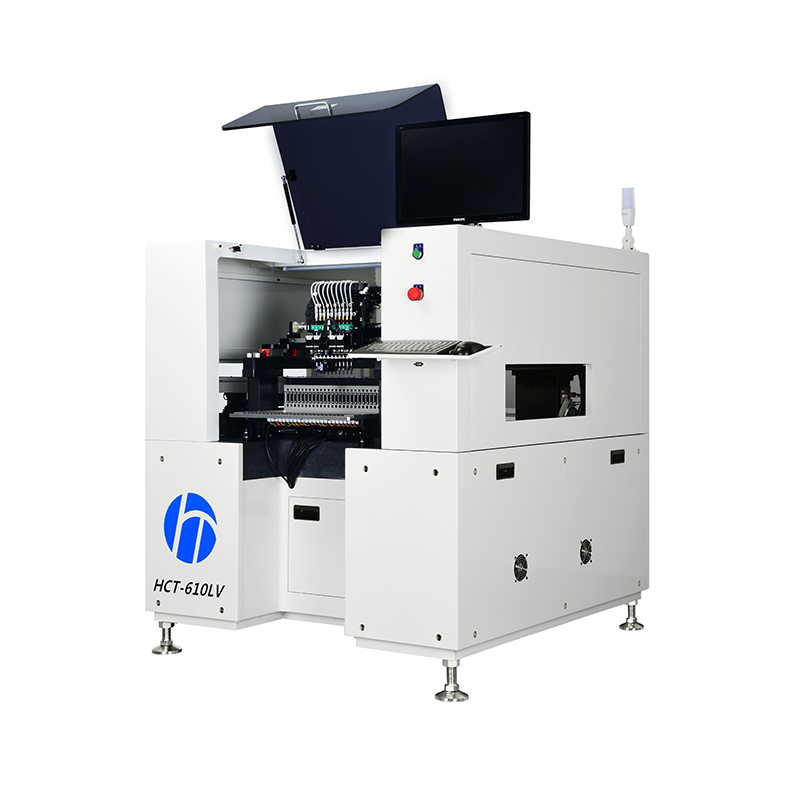

HCT-610LV Automatic 10 Heads DOB Pick and Place Machine
Belongs to category:
Automatic LED Pick and Place MachineProduct Description
Technical Parameters - Led Pick And Place Machine Factory
|
Model |
HCT-610LV |
|
|
Alignment |
Flying Vision Alignment System （Bottom Fixed Cameras） |
|
|
Number of Spindles |
10 Spindles x 1 Gantry |
|
|
RatedPlacement Speed |
Vision Alignment |
LED 2835 55,000 CPH (Optimum) |
|
Placement Accuracy |
±0.05mm (Based on the standard chips) |
|
|
Mechanical Precision |
±0.02mm |
|
|
Component Range |
Fly Camera |
0603(inch)~5050~7474(mm), high-power LED,IC<10mm |
|
Max Height |
H=18mm |
|
|
Board Dimension(mm) |
Minimum |
50(L) x 50(W) |
|
Maximum |
600(L) x500(W) |
|
|
PCB Thickness |
0.5 - 3.0 |
|
|
Board Handling Method |
Inline Conveyor |
|
|
Tape Feeder |
Feeder Type |
ElectricFeeder |
|
Feeder Capacity |
26 (12mm Standard) |
|
|
Optional |
8mm, 12mm, 16mm, 24mm |
|
|
Utility |
Power |
AC 220V/240V 50/60Hz, Single phase |
|
Max3.0KW |
||
|
AirSupply |
Built-in Vacuum Pump (for nozzles only) |
|
|
Mass |
Approx.1500kg |
|
|
External Dimension(mm) |
1,230(L) x1,530(D) x 1,360(H) |
|
Product Features - Automatic 10 Heads DOB Pick and Place Machine
1. High-accuracy: Equipped with 5 high-definition digital vision alignment cameras to guarantee high accuracy on-the-fly mode.
2. High-speed: Maximum placement speed reaching 0.065s/chip.
Automatic nozzle change function to ensure the speed of different sizes of components.
3. With a SMEMA-compatible inline conveyor for line automation.
4. Places SMD components from 0603 to 7474, apply to LED chip, capacitors, resistors, IC, diode, odd-shaped components, etc.
5. Highest applicability of high-speed chip mounters to LED DOB high components.
6. Suitable for all LED lighting products, including flexible PCB strips, circular LED light bulb boards, and even irregularly shaped boards. Assembles LED PCBs up to 600mm long in a single pass.
7. Excellent quality hardware support by using international famous brands ensures placement repeatability and precision.
8. Self-developed software simplifies production, easy to operate and program.
Excellent Quality Hardware Support
Ball Screws: KURODA / THK / NSK (Japan)
Linear Guide: HIWIN (Taiwan)
Servo Motors & Drivers: PANASONIC (Japan) / MOONS (China)
Stepper Motors & Drivers: MOONS (China)
Cables & Tank Chain: IGUS (Germany)
Solenoid Value: CKD (Japan) / MAC (America)
IPC: Independent Research & Development
