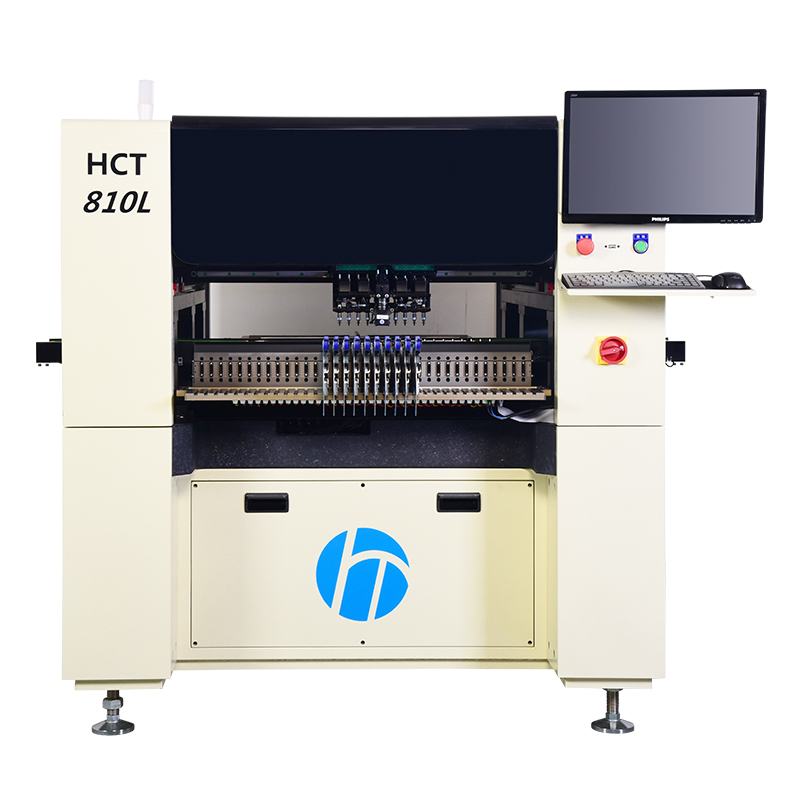

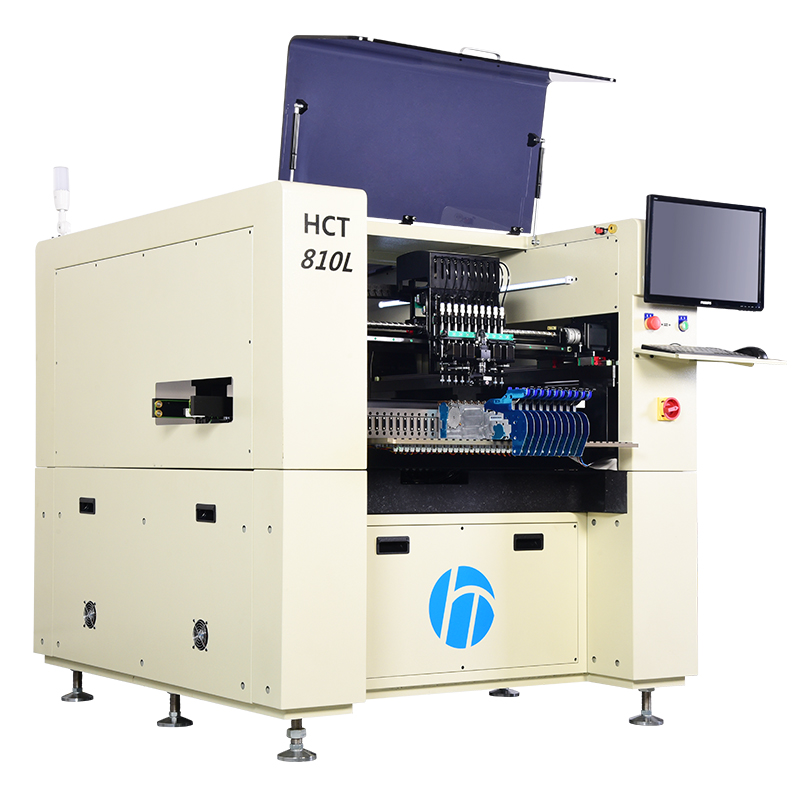

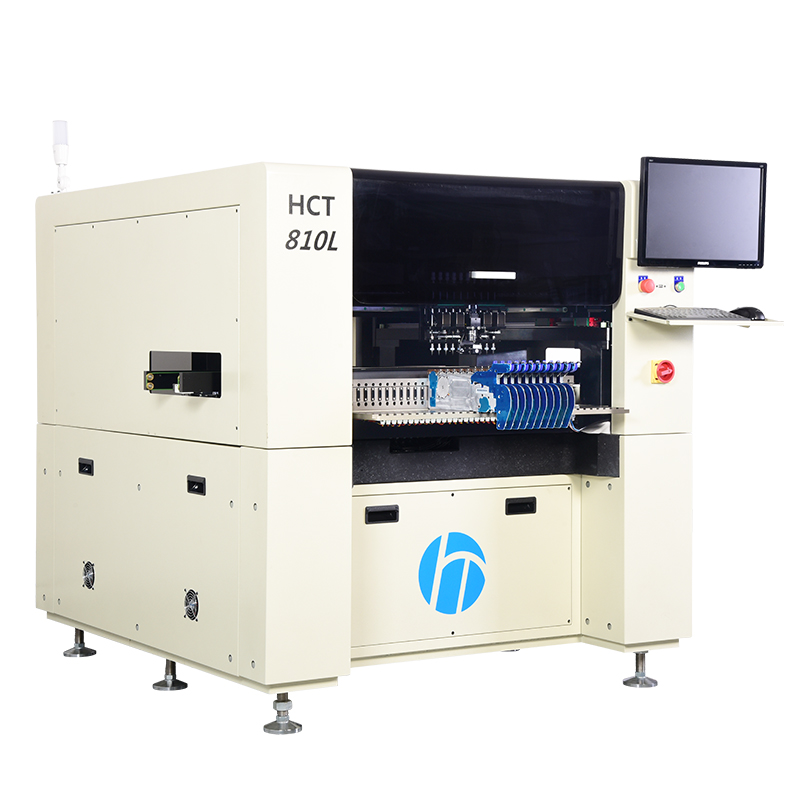

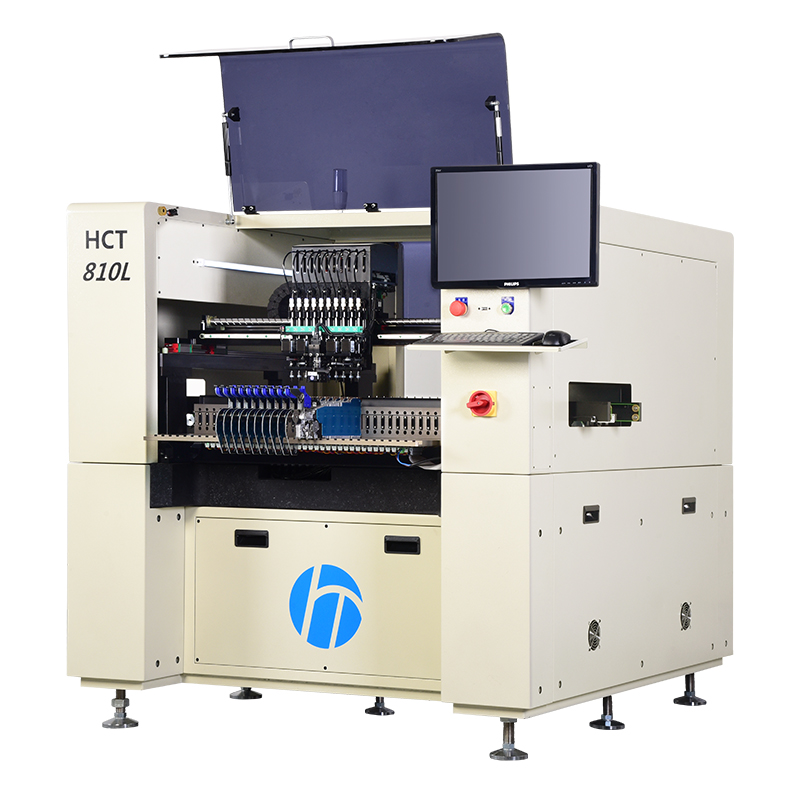

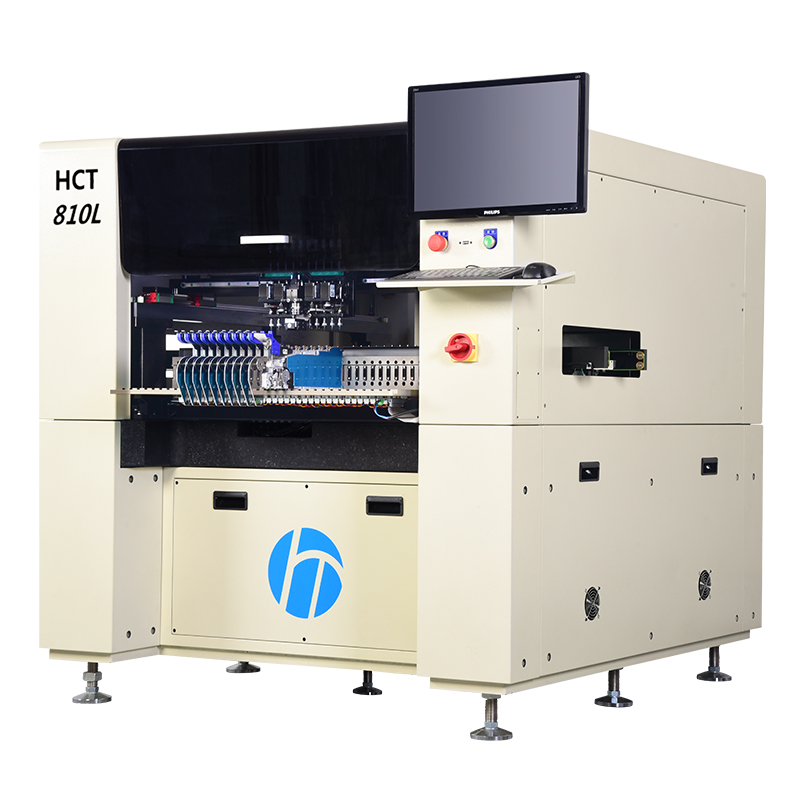

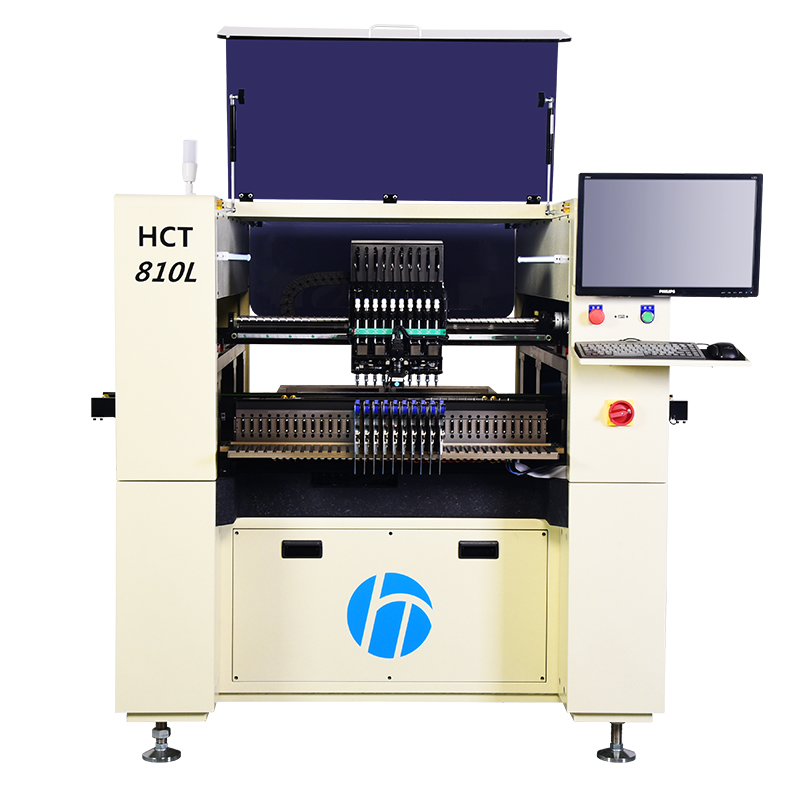

HCT-810L Automatic 10 Heads DOB Pick and Place Machine

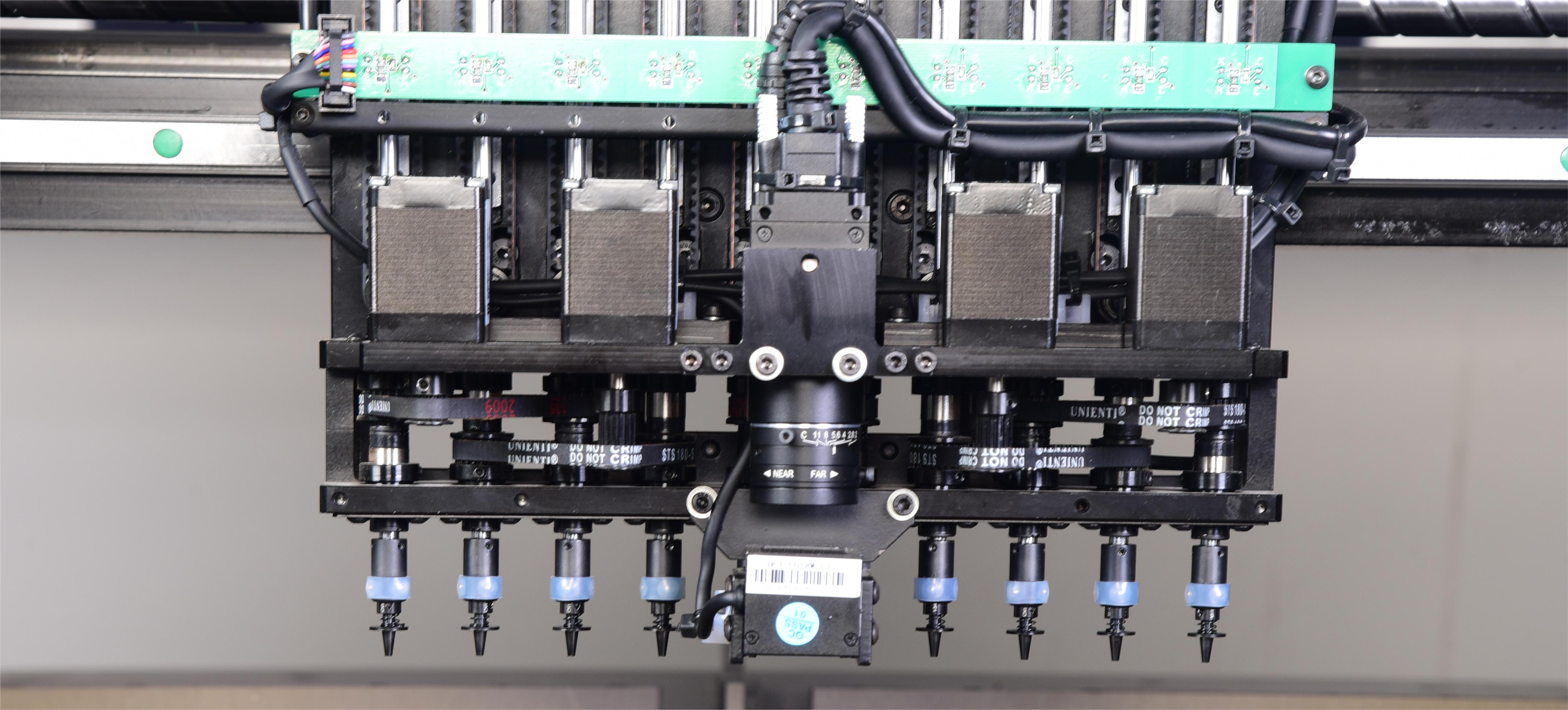

The HCT-810L stands at the forefront of placement machine technology, boasting the revolutionary Flying Vision Alignment System. This state-of-the-art system, combined with its bottom fixed cameras and 10 spindles on a single gantry, elevates the machine’s capabilities to unparalleled levels of precision and speed in component placement.
Belongs to category:
Automatic LED Pick and Place MachineProduct Description
P&P Machine Standard Spare Parts List:
No. Specifications Qty

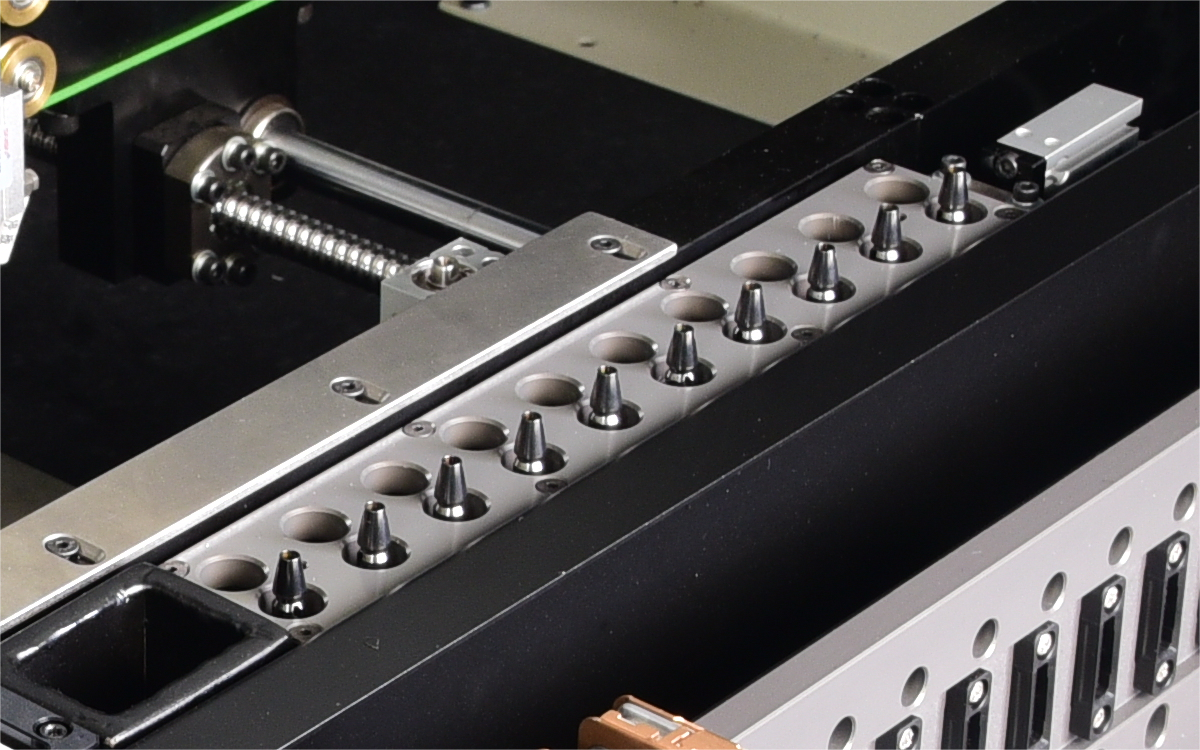

1. Nozzles *30
2 .Hexagon Wrench Tool * 1
3 .Material Rack * 1
Product Features
Automatic Nozzle Calibration: The machine is equipped with automatic nozzle calibration functionality, ensuring precise and accurate component placement without the need for manual adjustments.
Intelligent Component Recognition: The HCT-810LV utilizes advanced image processing technology to automatically recognize and identify different components, reducing setup time and minimizing errors.
Multi-functional Placement Heads: Each of the 10 placement heads is capable of handling various component types and sizes, providing versatility and flexibility in production.
User-friendly Interface: The machine features a user-friendly interface with intuitive controls, making it easy for operators to set up and operate the machine efficiently.
High-speed Vision Alignment: The flying vision alignment system enables fast and accurate component alignment, resulting in high-speed placement and increased productivity.
Specification
Model | HCT-810L | |
Alignment | Flying Vision Alignment System （Bottom Fixed Cameras） | |
Number of Spindles | 10 Spindles x 1 Gantry | |
RatedPlacement Speed | Vision Alignment | 30,000 CPH (Optimum) |
Placement Accuracy | ±0.05mm (Based on the standard chips) | |
Mechanical Precision | ±0.02mm | |
Component Range | Fly Camera | 0402(inch)~20x20(mm) |
Max Height | H=20mm | |
Board Dimension(mm) | Minimum | 50(L) x 50(W) |
Maximum | 400(L) x350(W) | |
PCB Thickness | 0.5 - 3.0 | |
Board Handling Method | Inline Conveyor (3-section Transmit ) | |
Tape Feeder | Feeder Type | ElectricFeeder |
Feeder Capacity | 35 (16mm Standard) | |
Optional | 8mm, 12mm, 16mm, 24mm, 32mm | |
Utility | Power | AC 220V/240V 50/60Hz, Single phase |
Max3.0KW | ||
AirSupply | Built-in Vacuum Pump (for nozzles only) | |
Mass | Approx.1600kg | |
External Dimension(mm) | 1,780(L) x1,700(D) x 1,500(H) | |
Product Advantages
1.Improved Placement Accuracy: With a placement accuracy of ±0.05mm, the machine ensures precise and reliable placement of components, reducing the risk of defects and improving overall product quality.
2.Efficient Material Management: The machine is equipped with a material rack and a comprehensive inventory management system, allowing for efficient handling and tracking of components during production.
3.Remote Monitoring and Control: The HCT-810LV supports remote monitoring and control capabilities, enabling operators to monitor production status and make adjustments remotely, improving operational efficiency.
4.Excellent Hardware Support: The machine is built with high-quality hardware components from renowned brands, ensuring long-term reliability, stability, and durability.
