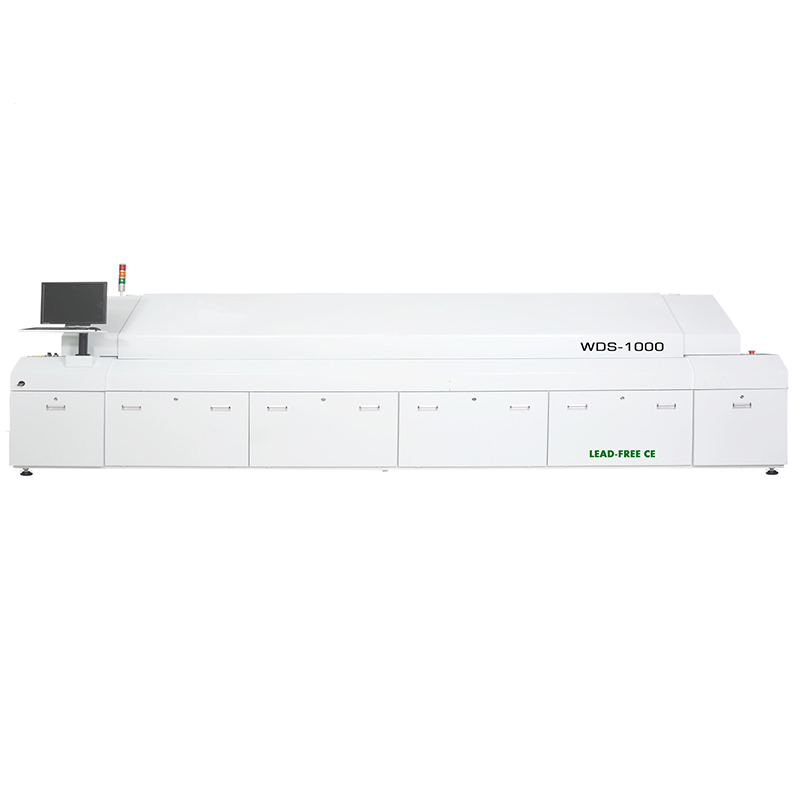

WDS-1000 TOP 10 Zones Lead-free Hot Air Reflow Soldering Machine
WDS-1000 is a 20-zone full hot air reflow oven with 10 upper+10 bottom heating zones. It features dual-stage linear cooling, ±2℃ temperature accuracy and UPS power-off protection. Supports PCB width up to 600mm mesh belt for stable lead-free soldering.
Belongs to category:
Reflow Soldering MachineProduct Description
TECHNICAL PARAMETER - Hot Air Reflow Oven Soldering Machine
Model No. | WDS-1000 |
Heating Parts Parameters | |
Number of Heating Zones | Up10 + Bottom10 |
Length of Heating Zones | 3960mm |
Heating Pattern | FullHotAir (up and down in a small cycle) |
Number of Cooling Zones | Plasma fan air-cooled plus two-stage liner cooling (length 800MM) |
Conveyor Parts Parameters | |
Max.Width Of PCB | Mesh Belt 600mm, Track 400mm |
Conveyor Direction | L→R |
Conveyor Height | 880±20mm |
Transmission Agent | Mesh + Chain |
Conveyor Speed Range | 0-2000mm/min |
Control Parts Parameters | |
Power Supply | 5 Wire, 3 Phase, 380V |
Start Power | 58KW |
Power Consumption | Approx10-12KW |
Warming Time | Approx 20 mins |
Temp. Setting Range | Room Temp.-380℃ |
Temperature Control Method | PC+PID+SSR |
TemperatureDifference Between Adjacent Zone | 70 ℃, can correspond to the highest standards of lead-free process. |
Temperature Control Precision | ±2℃ |
Temperature Deviation on PCB | ±2℃ |
Abnormal Alarm | Temperature abnormal（too high or too low after the constant temperature keeping） |
Power-offProtection | UPS |
Open Way | Electric Screw Rod |
General Parameters | |
Dimension(L*W*H)mm | 6100*1350*1500 |
Weight | Approx2000Kg |
SPECIFICATION:Hot Air Reflow Oven Soldering Machine
Windows XP O/S, so simply as Chinese and English interface onscreen alternative available.
Heating devices used high quality imponents,ensure the whole system goes smoothly .
The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.
Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out, report saving.
Temperature and blower speed controlling adjustable independently, to meet the high-precision requirements.
Combined with temperature controller PID fuzzy control function,has been monitoring the change of the ambient temperature and heat value ,with the minimum pulse control heating device , fast response, guarantee the temperature control precision ,minimize temperature distribution differences inside the oven ,the length direction of the temperature distribution accords to IPC STANDARDS .
To minimize the temperature difference of various volumes of components by newly chambers design, with enhance the reliability and protective of each solder joints.
Step forced cooling system to easily achieve the requirements of strict lead-free processes (cooling slope: ≥ 3degree/sec. )
Center support and dual rails are optional.
Optional Nitrogen configuration.
MAIN FEATURES - Hot Air Reflow Oven Soldering Machine
1. PLC controller, PC, and online UPS form a stable, safe, and efficient controlling system.
2. The software has functions like temperature setting and editing, PCB parameter menu, profile testing, alarms, and multi-language conversion.

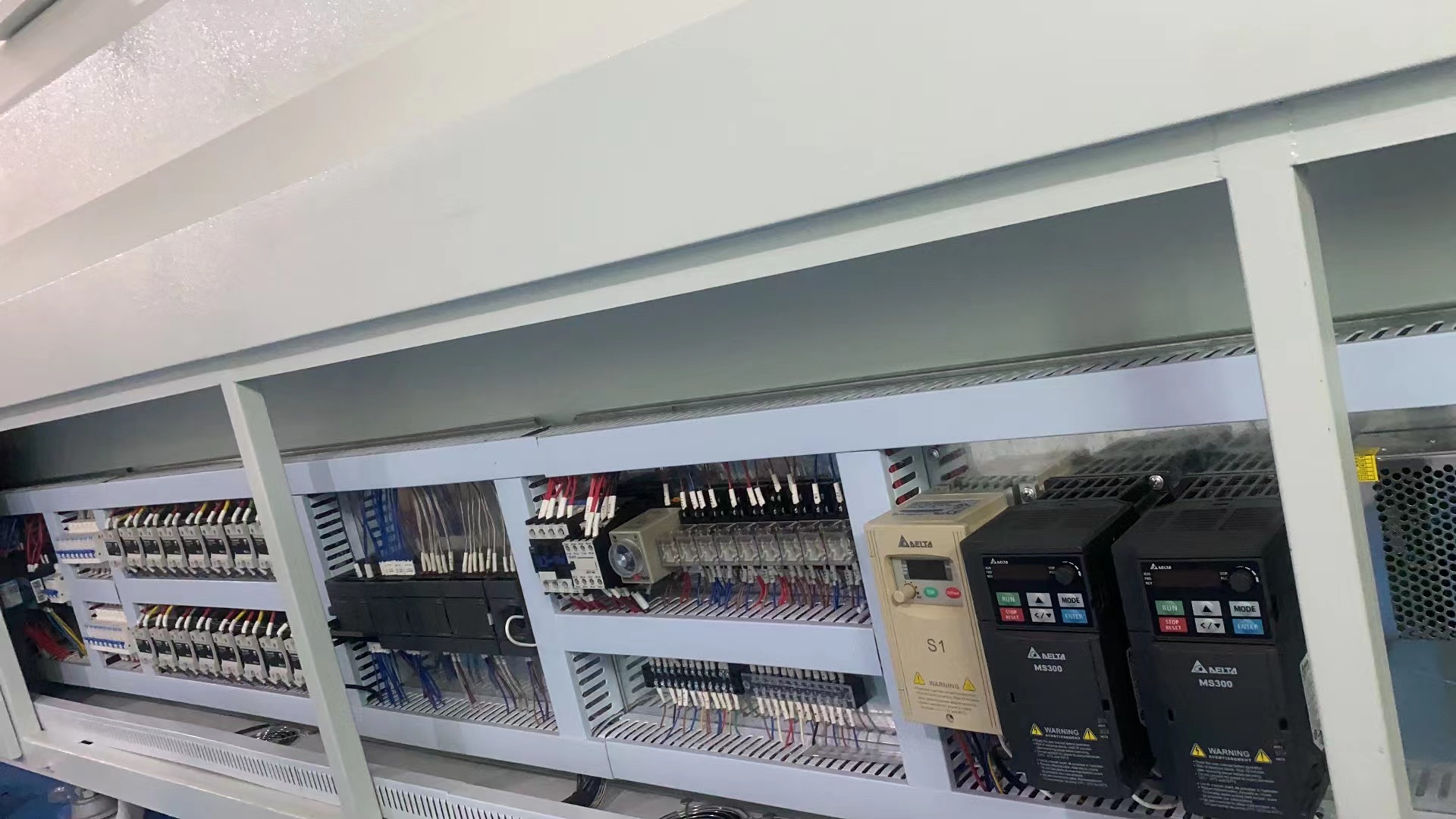

3. Brand electrical components like Schneider (German) breaker, KETE(Korea) SSR, and Omron (Japan) box breaker. Meanwhile, the CE-certificated blower is specially designed for a lead-free reflow oven. Making it run very stable and making very low noise.
4. The Upper zone and hood can be opened with an electrical screw. It is very convenient for cleaning and maintenance.
5. Specially designed Ni-Cr heater filaments, provide a very quick ramp-up time. It only takes 15 minutes from ambient to setting temperature.
6. The inner tunnel of the oven is made of stainless steel making it easy to clean.

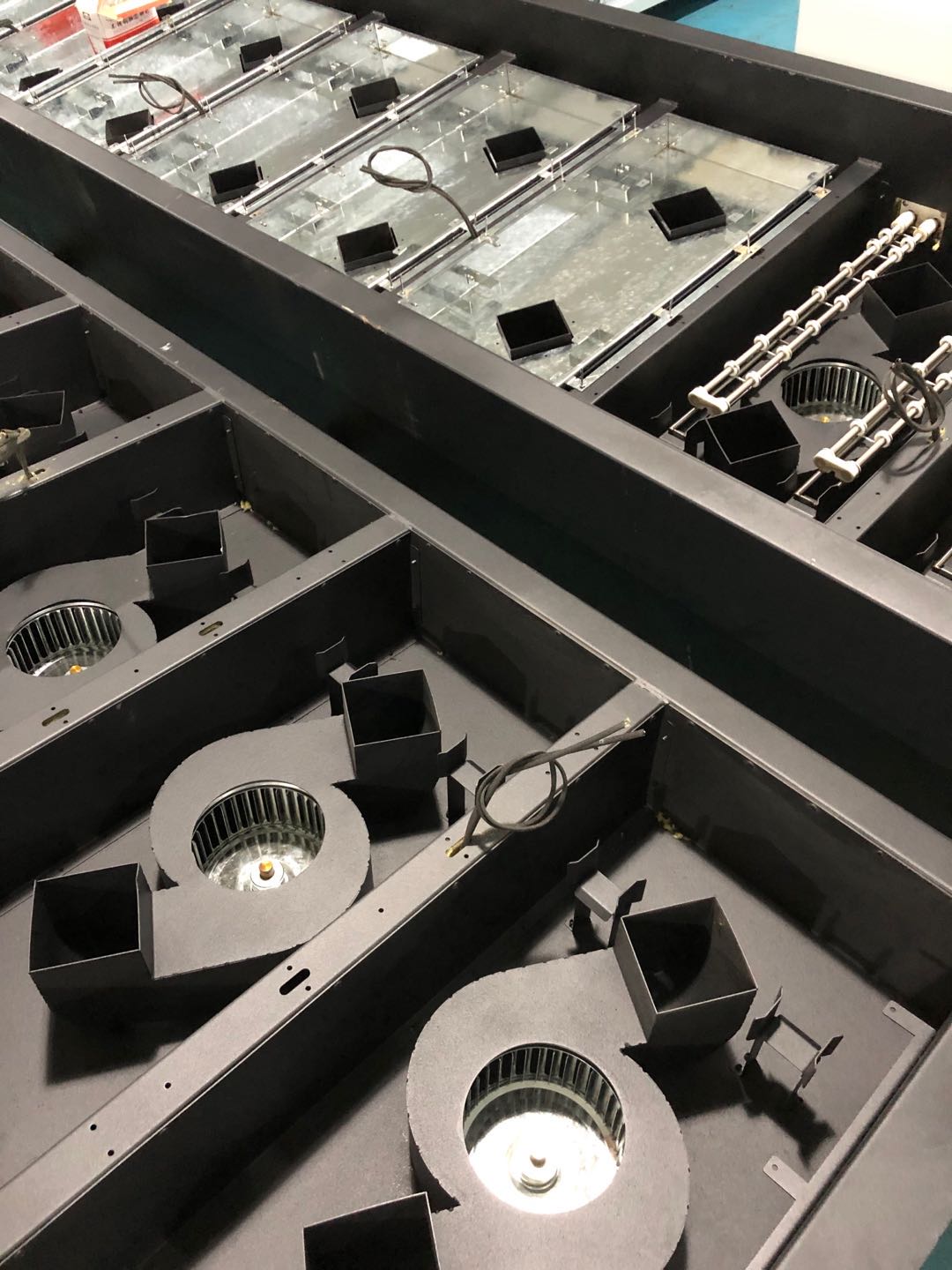

7. The entire upper and bottom zones are forced air convection, providing accurate and uniform temperatures.
8. The stainless steel mesh belt and pin chain conveyor work together.
9. Built-in industrial chiller provides better cooling performance.
HCT - China Hot Air Reflow Oven Soldering Machine Manufacturer
HCT is a well-known manufacturer of hot air reflow ovens and soldering machines in China. They specialize in providing high-quality equipment for surface mount technology (SMT) assembly processes. HCT offers a range of reflow ovens and soldering machines that are widely used in various industries, including electronics manufacturing.
Their products are known for their advanced features and precision, ensuring efficient soldering and reflow processes. HCT's hot air reflow ovens are designed to meet the demanding requirements of modern electronics production, delivering excellent temperature control, uniform heating, and reliable soldering results.
As a reputable manufacturer, HCT focuses on providing reliable customer support and after-sales services. They work closely with customers to understand their needs and offer tailored solutions for their soldering and reflow oven requirements.
When considering HCT as a manufacturer, it is recommended to review their product specifications, customer reviews, and warranty terms to ensure they meet your specific needs. Additionally, contacting them directly for more information or consulting with their authorized distributors can provide further assistance in making an informed decision about their products.

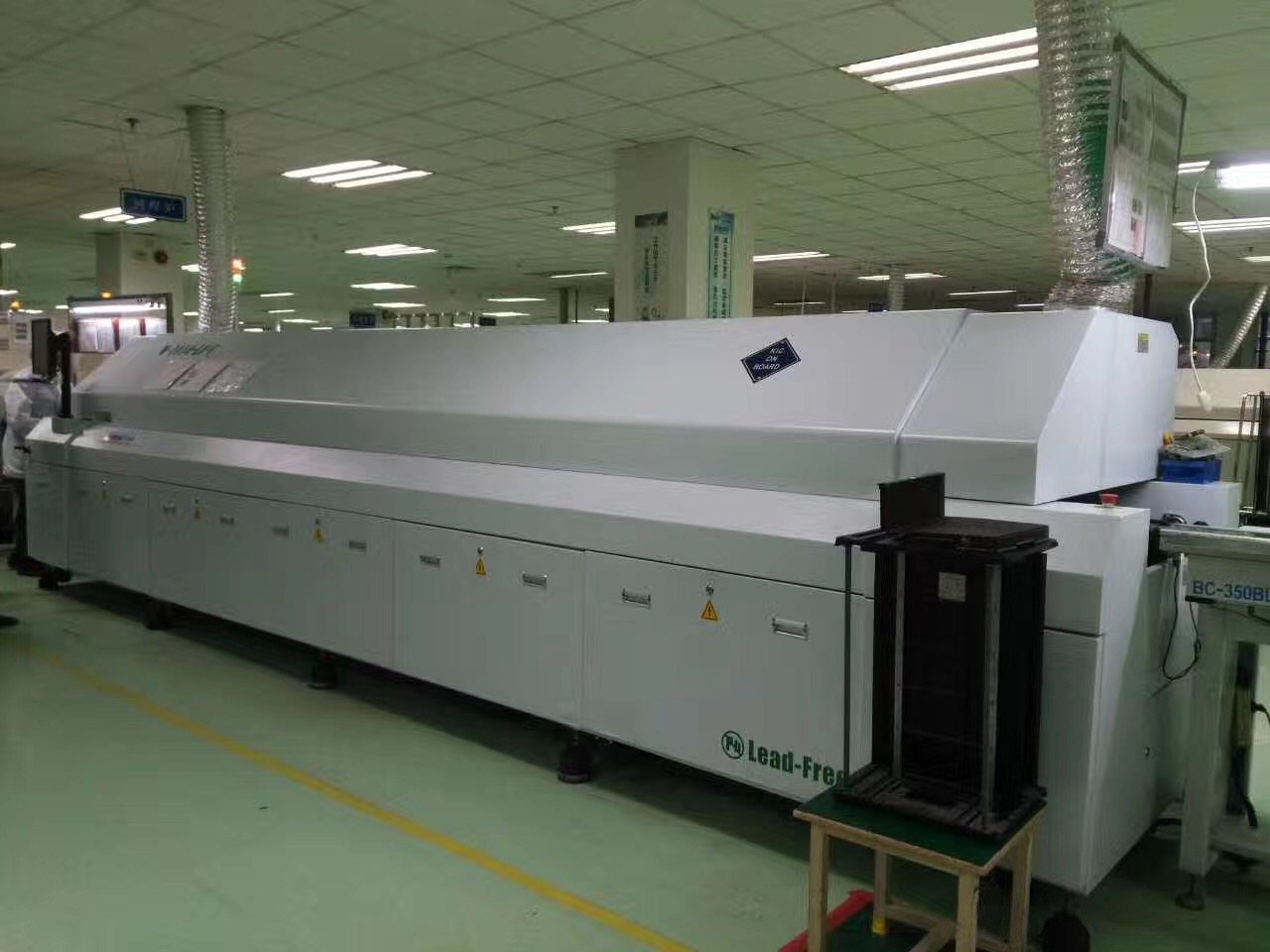

PRODUCT DISPLAY - Hot Air Reflow Oven Soldering Machine
