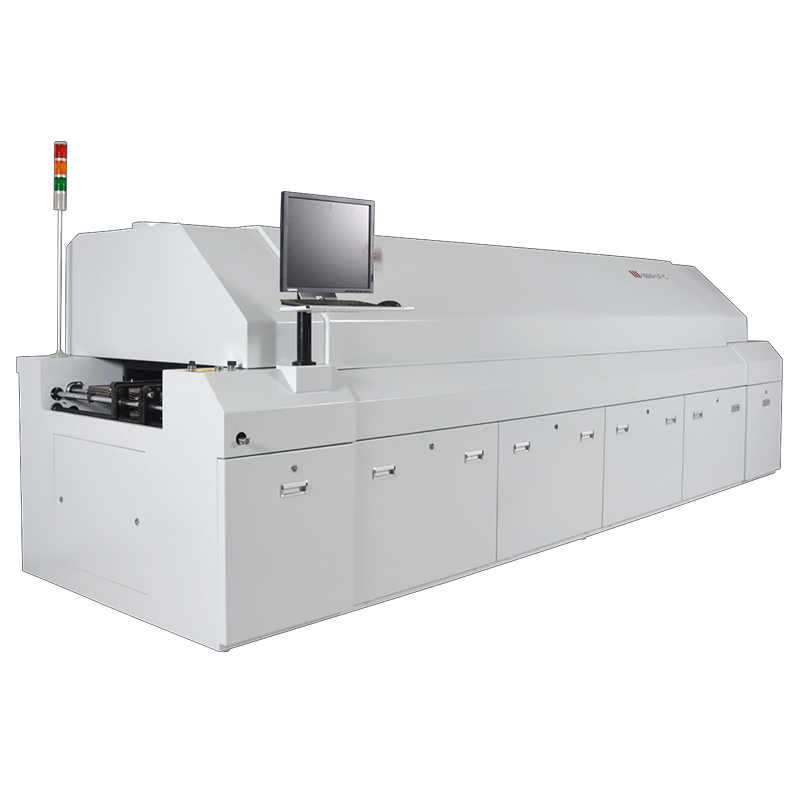

W-8800-LF-C Big-Sized 8 Zones Lead-Free Smt Reflow Soldering Oven

TECHNICAL PARAMETER - Big-Sized 8 Zones Lead-Free Smt Reflow Soldering Oven

Model No.	W-8800-LF-C
Heating Parts Parameters
Number of Heating Zones	Up8 + Bottom8
Length of Heating Zones	3180mm
Heating Pattern	FullHotAir (up and down in a small cycle)
Number of Cooling Zones	Plasma fan air-cooled plus two-stage liner cooling (length 800MM)
Conveyor Parts Parameters
Max.Width Of PCB	Mesh Belt 600mm, Track 400mm
Conveyor Direction	L→R
Conveyor Height	880±20mm
Transmission Agent	Mesh + Chain
Conveyor Speed Range	0-2000mm/min
Control Parts Parameters
Power Supply	5 Wire, 3 Phase, 380V
Start Power	48KW
Power Consumption	Approx8-10KW
Warming Time	Approx 20 mins
Temp. Setting Range	Room Temp.-380℃
Temperature Control Method	PC+PID+SSR
TemperatureDifference Between Adjacent Zone	70 ℃, can correspond to the highest standards of lead-free process.
Temperature Control Precision	±2℃
Temperature Deviation on PCB	±2℃
Abnormal Alarm	Temperature abnormal（too high or too low after the constant temperature keeping）
Power-offProtection	UPS
Open Way	Electric Screw Rod
General Parameters
Dimension(L*W*H)mm	5300*1350*1500
Weight	Approx1800Kg

PRODUCT SPECIFICATION - Big-Sized 8 Zones Lead-Free Smt Reflow Soldering Oven

1.Heating System

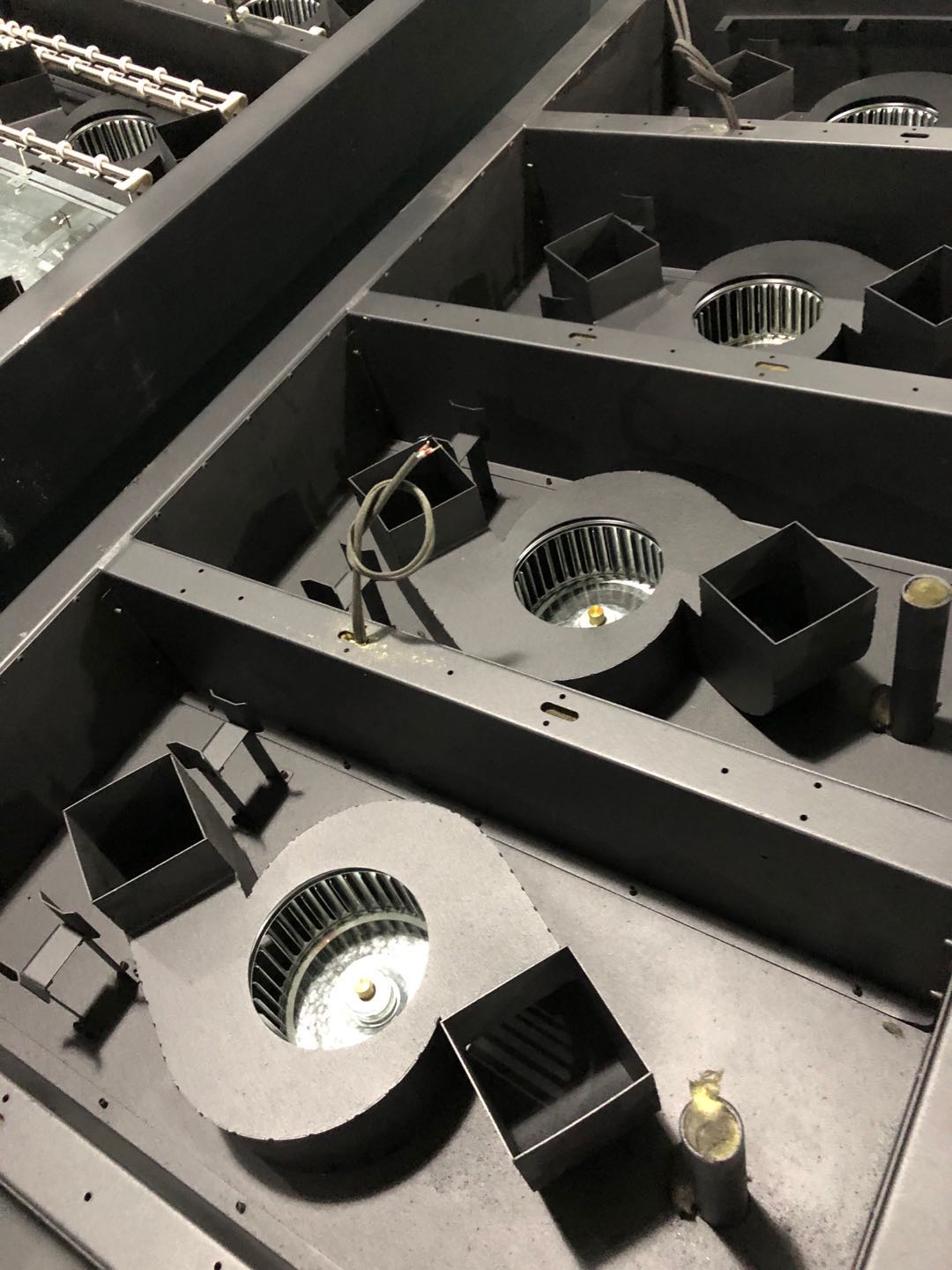

• Full three-layer rectified high-temperature copper plate full-cycle hot air system and turbo-charged multi-point jet technology to ensure a uniform temperature in the furnace, good anisotropy in each temperature zone, and the board surface does not generate heated empty areas due to refraction when it is heated and does not produce shadows.
• Fundamentally improves heating efficiency. Fast and efficient thermal compensation performance, especially suitable for perfect welding of components such as computer motherboards and mobile phone boards, such as BGA, CSP, QFP, and multilayer circuit boards. There are no temperature series in each adjacent temperature zone.
• Upper and lower independent heating module, independent hot air circulation, double welding zone, or triple welding zone.

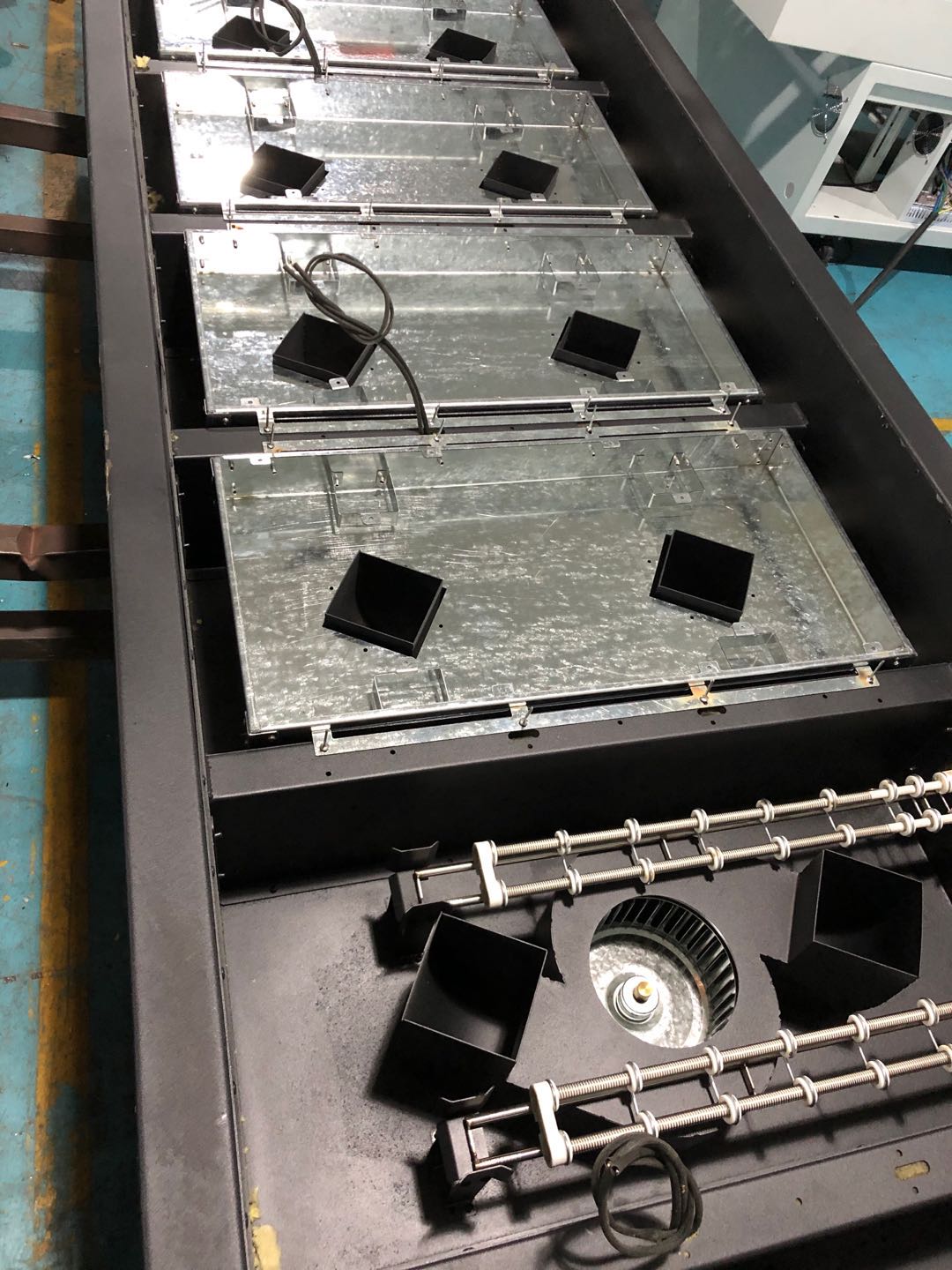

• Each temperature zone adopts a modular design, high temperature resistant long shaft hot air motor, and high energy nickel chromium heating wire that are easy to maintain and repair.

2.Transportation System

• Symmetrical double-groove guide rail, high-temperature resistance without deformation, low thermal inertia. The standard chain and mesh are transported at the same speed and parallel speed, and a dual-rail transportation system or a central support system is available.
• The width adjustment adopts a four-rack coaxial width adjustment structure, which effectively guarantees the parallel guide rails, prevents the occurrence of falling boards and stuck boards, no-clean and easy adjustment. The widening operation can be performed automatically and manually.

• Computer-controlled automatic refueling system, which can refuel automatically according to the transportation speed and machine status, and the flow can be adjusted.
• The automatic width adjustment system adopts closed-loop PID control, which can be automatically adjusted to the required width according to the parameters entered by the computer, with an accuracy of 0.2mm.

3.Cooling and Soldering Flux Recovery System

• The forced cooling system adopts two or three sections of forced air cooling temperature zone to meet the lead-free process; the cooling curve is smooth, with no sudden change, full heat exchange, and the maximum cooling rate can reach -5 ℃ / S.
• Zone 4-8 has an independent flux collection system, which can keep the furnace clean for a long time and the exhaust emissions are more environmentally friendly. The gas separated by the nitrogen furnace can be recycled to save nitrogen.
• No filter design, easy to clean.

4.Nitrogen System (OPTIONAL)

• Fully sealed nitrogen protection system, low N2 consumption. When the nitrogen consumption is 15-20 m3, the welding zone can reach an oxygen concentration below 500PPM.
• The internal circulation cooling system ensures that nitrogen can be filtered and reused, further reducing nitrogen consumption.
• Panel design of nitrogen flow control and oxygen analysis system, easy to observe and adjust.

5.Control System

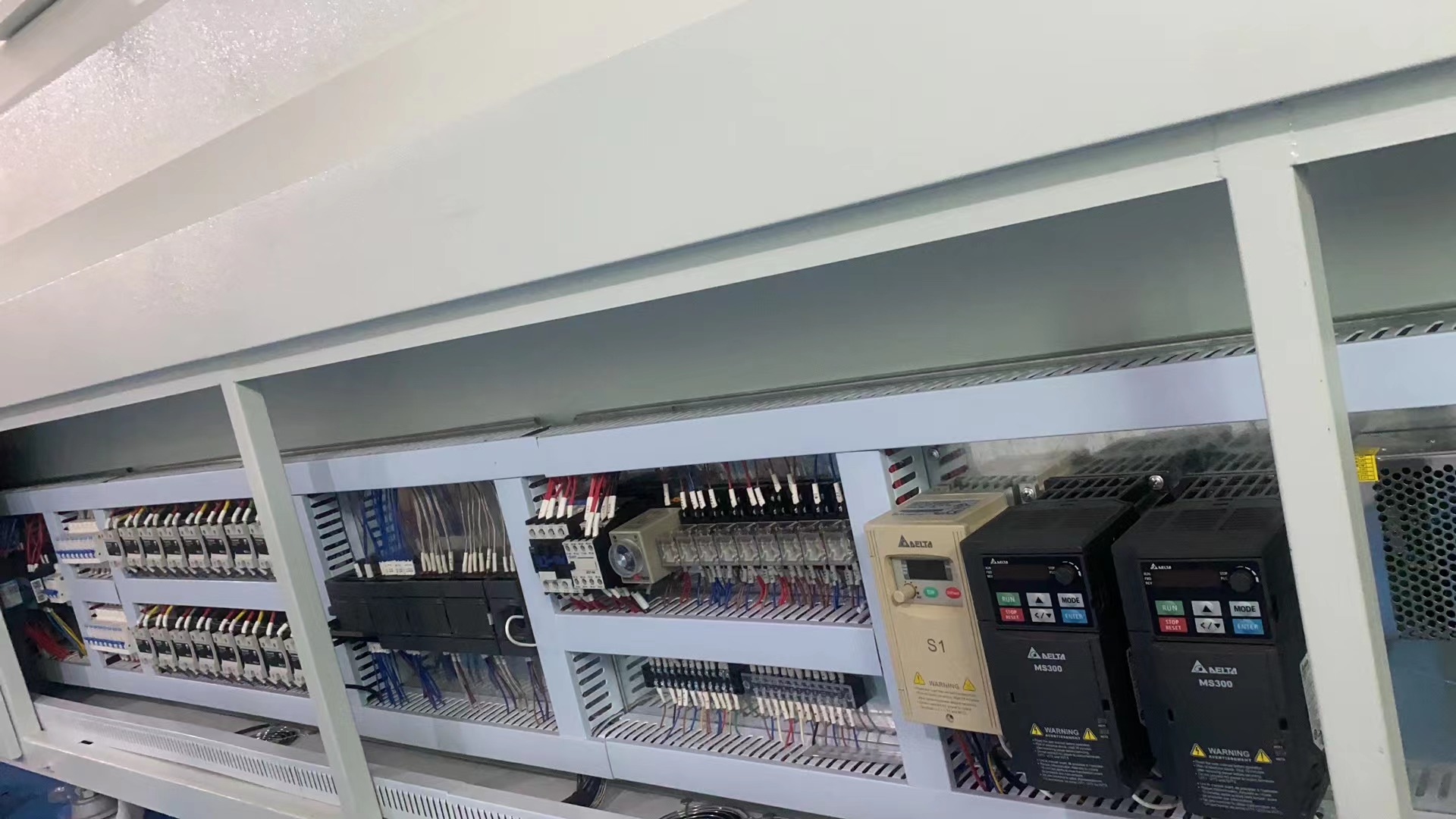

• The control system uses Mitsubishi PLC, and the upper computer uses a Lenovo computer, with Windows XP operating system and a 17-inch LCD, which is stable and reliable.
• The control software is powerful, with flexible process parameter control and temperature curve test functions. The Chinese and English operation interfaces can be switched at any time.
• Using WOGO terminals; all electrical components are imported brands, and all signal lines are shielding processing.
• Self-tuning of temperature module, automatic compensation of cold junction, temperature control within ± 1 ℃.
