HCT-530LV Automatic 1.2M LED Pick and Place Machine
The HCT-530LV high-speed LED placement machine adopts flying vision alignment and 8-spindle . It achieves 45,000 CPH optimum speed with ±0.05mm placement accuracy, supporting high-power LEDs and ICs for reliable inline SMT mass production.
Belongs to category:
Automatic LED Pick and Place MachineProduct Description
Technical Parameters - Wholesale Automatic Pick And Place Machine
Model | HCT-530LV | |
Alignment | Flying Vision Alignment System | |
Number of Spindles | 8 Spindles x 1 Gantry | |
RatedPlacementSpeed | Vision Alignment | LED 2835 45,000 CPH (Optimum) |
Placement Accuracy | ±0.05mm (Based on the standard chips) | |
Mechanical Precision | ±0.02mm | |
Component Range | VisionAlignment | 0603(inch)~5050~7474(mm), high-power LED,IC<10mm |
Max Height | H=10mm (can handle max. 16mm without vision alignment) | |
Board Dimension(mm) | Maximum | 1,200(L) x360(W) |
Board Handling Method | Inline Conveyor | |
Tape Feeder | Feeder Type | Electric Feeder |
Feeder Capacity | 20 (12mm) | |
Optional | 8mm, 12mm, 16mm, 24mm | |
Utility | Power | AC 220V/240V 50/60Hz, Single phase |
Max2.8KW | ||
AirSupply | 0.55-0.7MPa (5.6-7.1kgf/cm2) Built-in Vacuum Pump for Heads | |
Mass | Approx.1560kg | |
External Dimension(mm) | 2,000(L) x1,250(D) x 1,400(H) | |
Product Features - Automatic 1.2M LED Pick and Place Machine

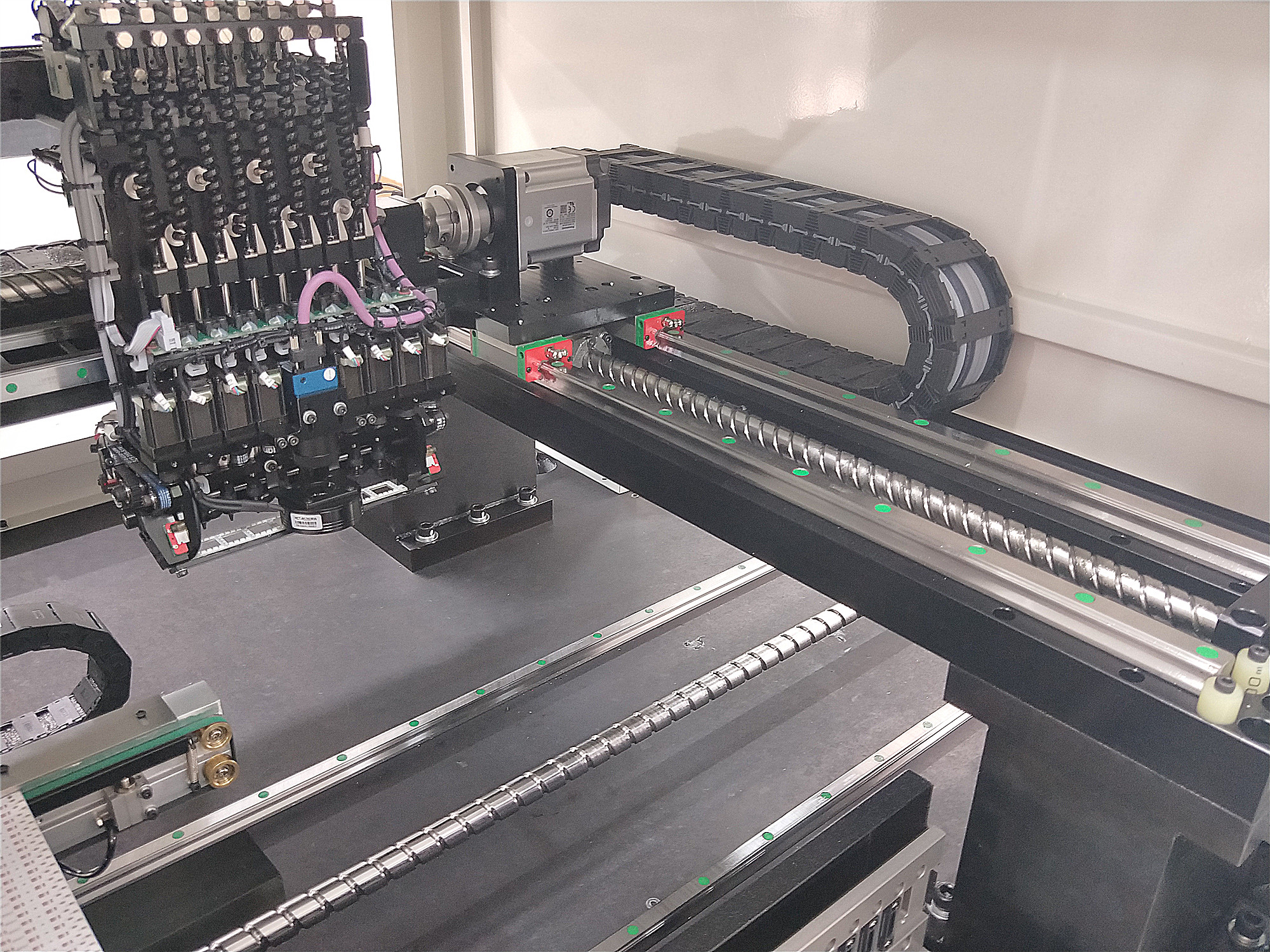

1. High accuracy: Each of the eight pick-up heads is equipped with a FLYING vision alignment camera to guarantee high accuracy.
2. High-speed: Maximum placement speed reaching 0.086s/chip.
Each mounting head has its Z - direction closed-loop stepper motor, which is designed for vertical motion.
3. Places SMD components from 0603 to 7474, including resistors, capacitors, and standard and irregularly shaped LEDs.

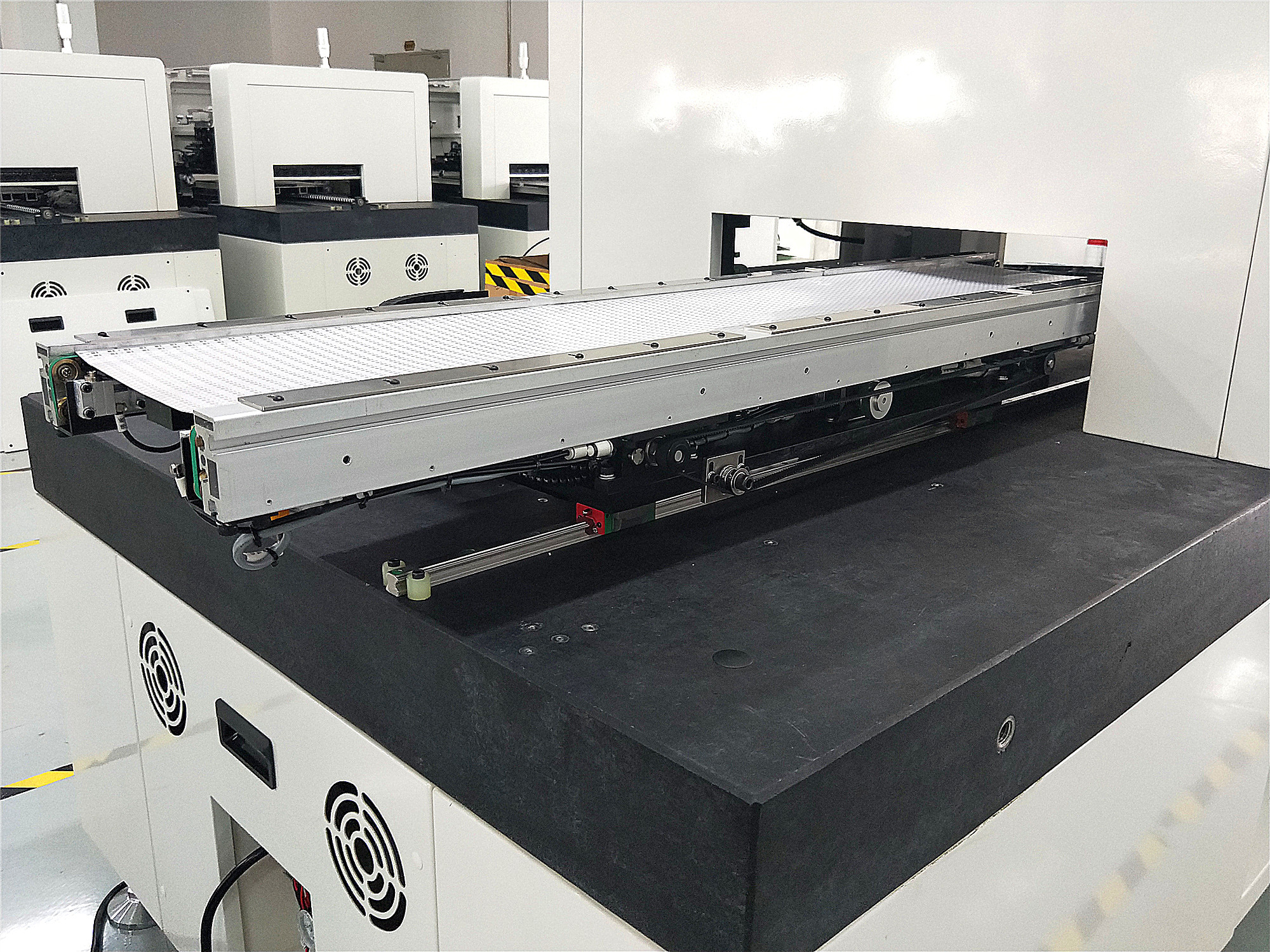

4. Suitable for all LED lighting products, including flexible PCB strips, circular LED light bulb boards, and even irregularly shaped boards. Assembles LED PCBs up to 1.2 meters long in a single pass.
5. With a SMEMA-compatible inline conveyor for line automation.
6. Heavy marble platform support to ensure long service life.
7. Excellent quality hardware support by using international famous brands ensures placement repeatability and precision.
8. Self-developed software simplifies production, easy to operate and program.
HCT-530LV Automatic 1.2M LED Pick and Place Machine is a desktop automatic pick and place machine specially developed for research laboratories and small and medium manufacturing enterprises however it will also be suitable for the serious hobbyist. These automatic pick-and-place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing, and other similar processes.
