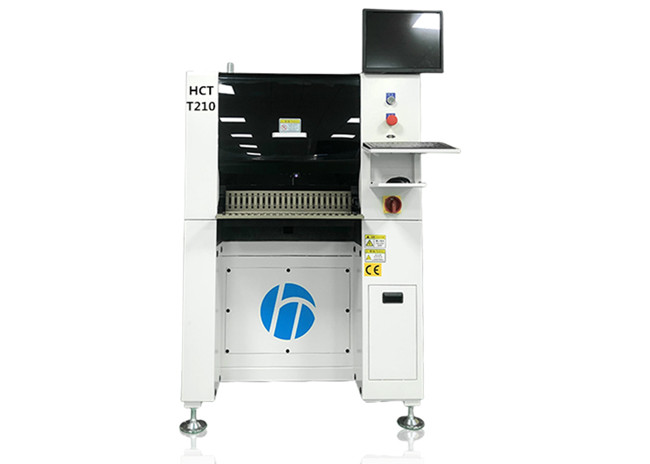

HCT- T210 Automatic 6 Heads Small SMT Machine
The HCT-T210 delivers reliable compact SMT mounting performance, equipped with flying vision and MARK alignment system. Supported by 6 spindles and imported ball screw servo drive, it realizes stable precision and supports extended-length PCBs for small and medium batch LED & electronic manufacturing.
Belongs to category:
General SMT Pick and Place MachineProduct Description
P&P Machine Standard Spare Parts List:
No. Specifications Qty
1.Nozzles *12
2.Hexagon Wrench Tool * 1
3.Material Rack * 1
Product Features
- Dual Vision Alignment System: Fitted with one flying vision camera and one MARK camera, the machine adopts vision alignment plus MARK correction to guarantee consistent positioning precision for various components.
- Extended PCB Compatibility: It supports standard 350×350mm PCB and optional 700×350mm two-section board, satisfying production requirements of long strip circuit boards and LED light panels.
- Multi-functional Placement Heads: Equipped with 6 placement heads that support components ranging from 0402 to 7474 and high-power LEDs, bringing great flexibility for diversified production tasks.
- Adjustable Mounting Height: Standard mounting height reaches ≤16mm and can be extended to ≤25mm under special settings, compatible with components of different heights.
- User-friendly Operation Mode: It supports vision teach-in and coordinate file import. Combined mechanical and visual positioning shortens debugging time and lowers the threshold for operators.
- Stable Servo Transmission: X/Y axes adopt imported ball screw and AC servo drive, delivering smooth movement and maintaining long-term mechanical accuracy.
Specification
|
Model |
HCT-T210 |
|
|
Alignment |
Flying Vision Alignment System |
|
|
（Bottom Fixed Cameras） |
||
|
Number of Spindles |
6 Spindles x 1 Gantry |
|
|
RatedPlacement Speed |
Vision Alignment |
14,000 CPH (Optimum) |
|
Placement Accuracy |
±0.05mm |
|
|
(Based on the standard chips) |
||
|
Mechanical Precision |
±0.02mm |
|
|
Component Range |
Fly Camera |
0402(inch)~5050~7474(mm)， |
|
high-power LEDs |
||
|
Max Height |
H≤16mm(Standard), |
|
|
H≤25mm(Special Setting) |
||
|
Board Dimension(mm) |
Minimum |
50(L) x 50(W) |
|
Maximum |
350(L) x350(W):Standard, |
|
|
700(L) x350(W):2-Sections |
||
|
PCB Thickness |
0.5 - 5.0 |
|
|
Board Handling Method |
Single section fixed track |
|
|
Tape Feeder |
Feeder Type |
Electric Feeder |
|
Feeder Capacity |
22 (12mm Standard) |
|
|
Optional |
8mm, 12mm, 16mm, 24mm, 32mm |
|
|
Utility |
Power |
AC 220V/240V 50Hz, |
|
Max2.5KW |
||
|
Air Supply |
0.4-0.6mpa |
|
|
Vacuum Generator for Nozzles |
||
|
Mass |
Approx. 600kg |
|
|
External Dimension(mm) |
920(L) x1,390(W) x 1,346(H) |
|
Product Advantages
1.Reliable Placement Precision: With stable ±0.05mm placement accuracy and dual visual correction, the machine effectively reduces mounting deviation and rejects, improving finished product quality.
2.Flexible PCB Production Capacity: Optional extended 700mm long board function can process long LED boards without upgrading equipment, expanding applicable production scenarios.
3.High Cost Performance for Medium Batch Production: 6 spindles and 14000CPH speed balance efficiency and investment, perfectly matching medium-volume sample trial and mass LED production.
4.Independent R&D Control Platform: Self-developed software, electrical and motion control modules ensure stable operation, convenient parameter debugging and simple after-sales maintenance.
5.Space-saving Compact Structure: Optimized overall dimension occupies less workshop area. Bidirectional online transmission makes it easy to integrate into existing assembly lines.
