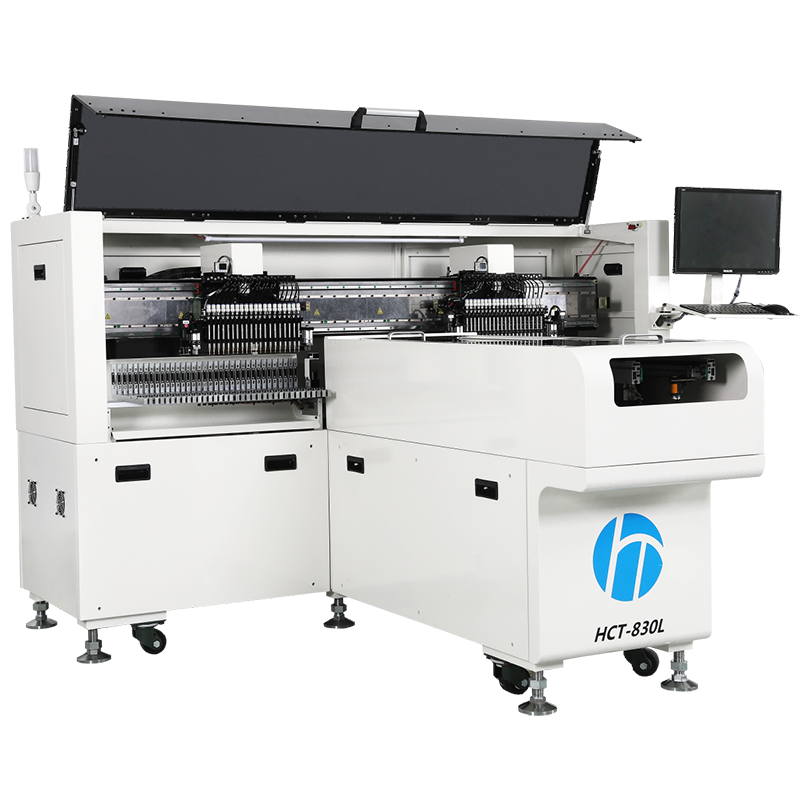

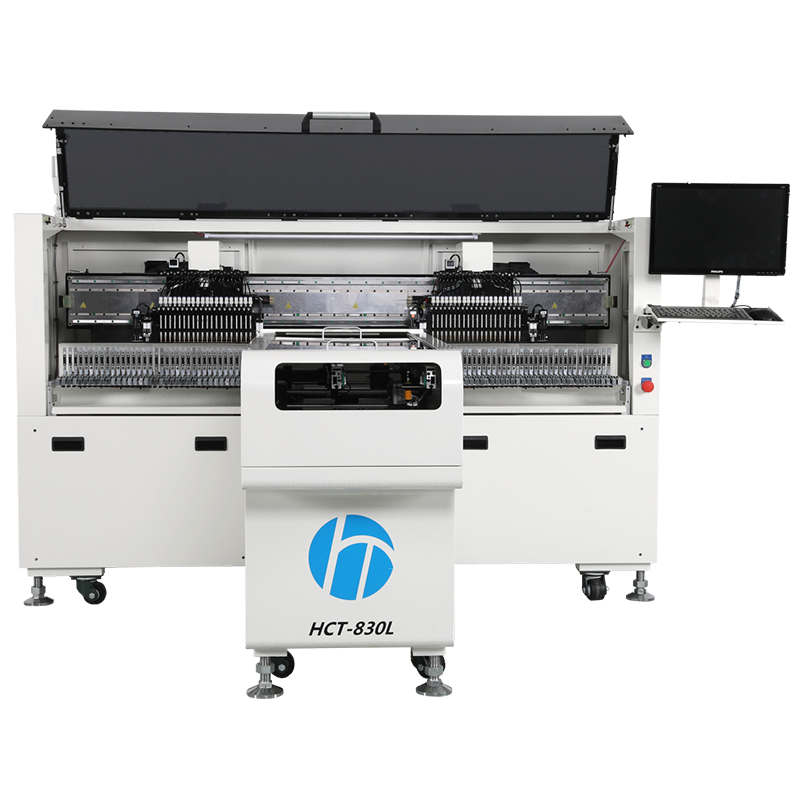

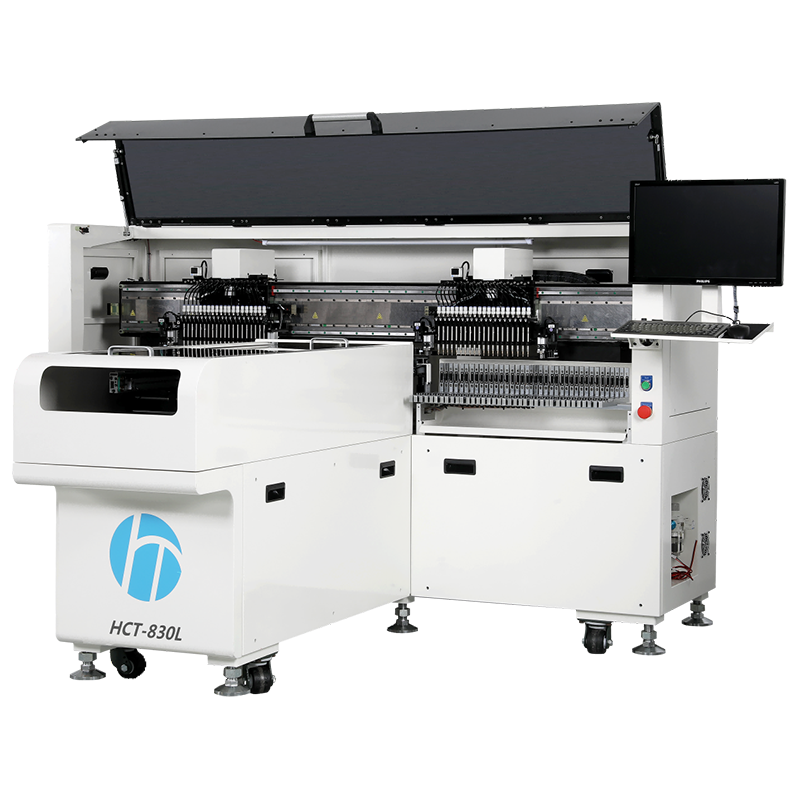

HCT-830L High-speed LED Chip Mounter
HCT-830L high-speed LED pick and place machine adopts dual gantry with 18 spindles. It hits 170,000 CPH for LED 2835 via group picking & placing. 5-camera vision ensures ±0.05mm accuracy, supporting common LEDs and resistors for mass LED board production.
Belongs to category:
Automatic LED Pick and Place MachineProduct Description
Technical Parameters - High-Speed LED Chips Mounter HCT-830L
|
Model |
HCT-830L |
|
|
Vision System |
5 Sets of Camera, Mark Correction |
|
|
Number of Spindles |
18 Spindles x2 Gantry |
|
|
RatedPlacement Speed |
LED 2835 170,000 CPH |
|
|
(Group Picking & Group Placing) |
||
|
Placement Accuracy |
±0.05mm |
|
|
(Based on the standard chips) |
||
|
Component Range |
Standard |
LED3014, 3020, 3528, 2835, 5730, 5630, 5050, 7030and Resistor 0805, 1206 |
|
Max Height |
H=8mm |
|
|
Board Dimension(mm) |
Maximum |
1,200(L) x 330(W) |
|
PCB Thickness |
0.5 - 3.0 |
|
|
Tape Feeder |
Feeder Type |
Electric Feeder |
|
Feeder Capacity |
72 (12mm) |
|
|
Optional |
8mm, 12mm, 16mm, 24mm |
|
|
Utility |
Power |
AC 220V/240V 50/60Hz, Single phase |
|
Max2.6KW |
||
|
Air Consumption |
0.55-0.7MPa (5.6-7.1kgf/cm2) |
|
|
Mass |
Approx. 1500kg |
|
|
External Dimension(mm) |
2,350(L) x2,450(D) x 1,425(H) |
|
Product Features - High-Speed LED Chips Mounter HCT-830L
1. Dual mounting arm design, 36 placement heads available. Can put 4 sets of feeders, a total of 72 feeders, components reloading doesn't affect the production capacity.
2. High-speed: Maximum placement speed reaching 0.027s/chip.
With a SMEMA-compatible inline conveyor for line automation. Complete intelligent production, save labor, and greatly improve efficiency and production capacity.
3. Placement Range: 4 kinds of RGB components can be handled at the same time, suitable for LED T5/T8, LED panel light, LED strip, diffuse reflection, and LED outdoor screen of 1.2m long or less.
4. Magnetic levitation linear motor for high repeatability and stability.
PCB Clamping Mode: automatic width adjustment for conveyor rail, floating clamping, improve efficiency and portability.
5. Excellent quality hardware support by using international famous brands ensures placement repeatability and precision.
6. Self-developed software simplifies production, easy to operate, and programming.
With the advancement of science and
technology, everyone is inseparable from electronic products. Every electronic
product needs PCB as a carrier to realize its function. There are hundreds of
components on some PCBs, and manual soldering of PCBs has long been unable to
meet the needs of the market. Generally, the simplest SMT line requires a solder
printer, a pick
and place machine, and a reflow oven, and the PCB component placement
machine is the most important link in PCB assembly.

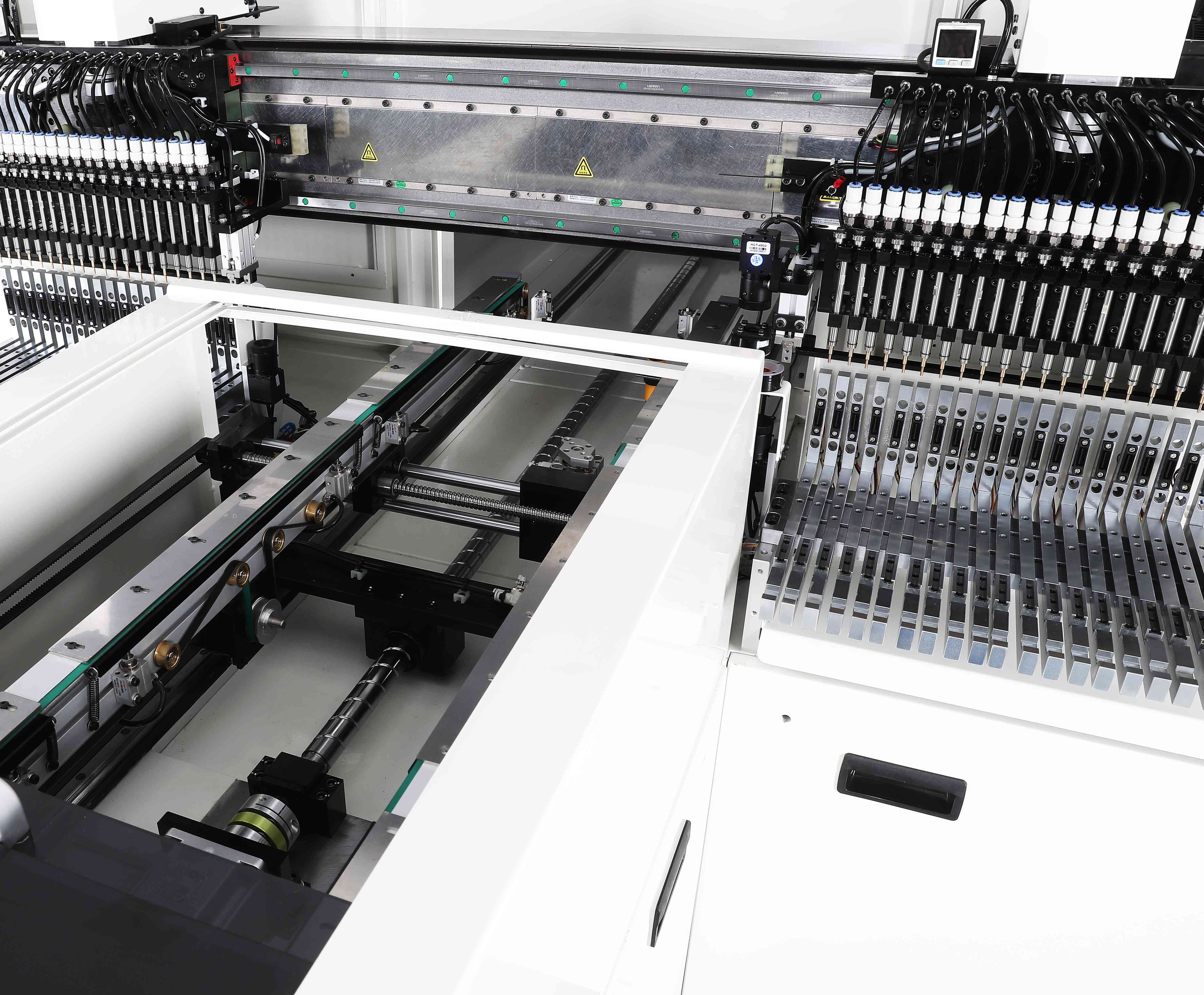

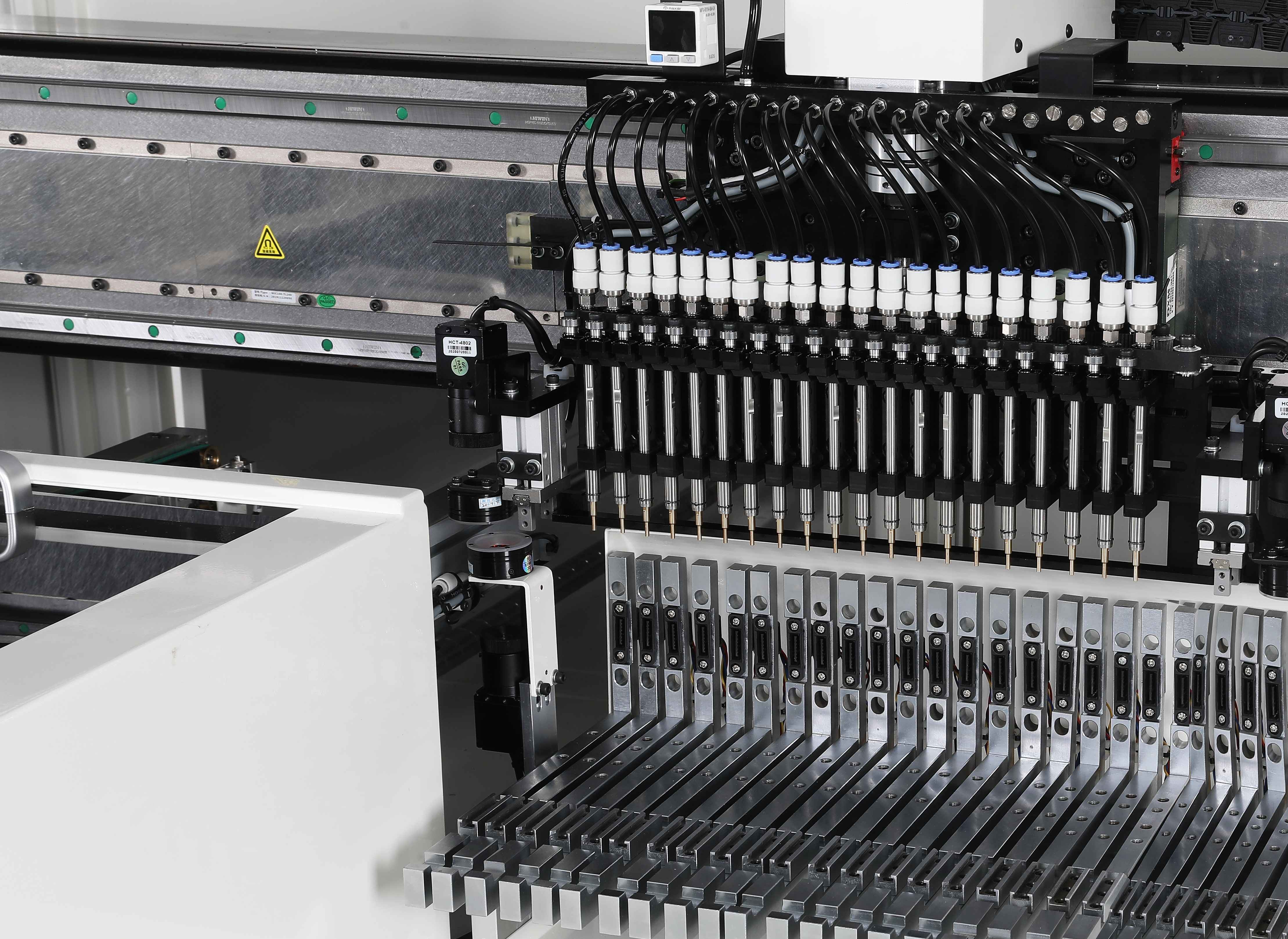

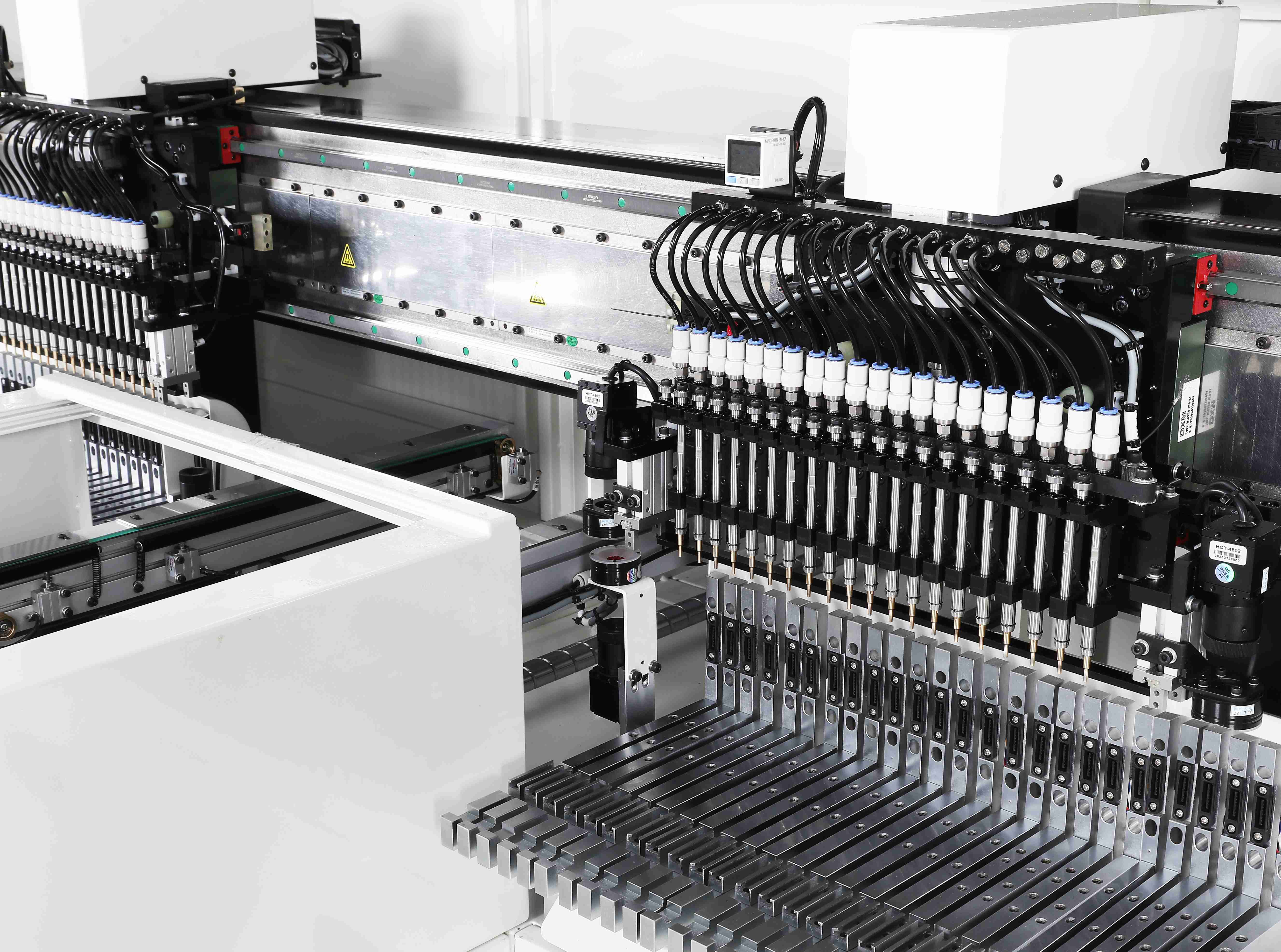

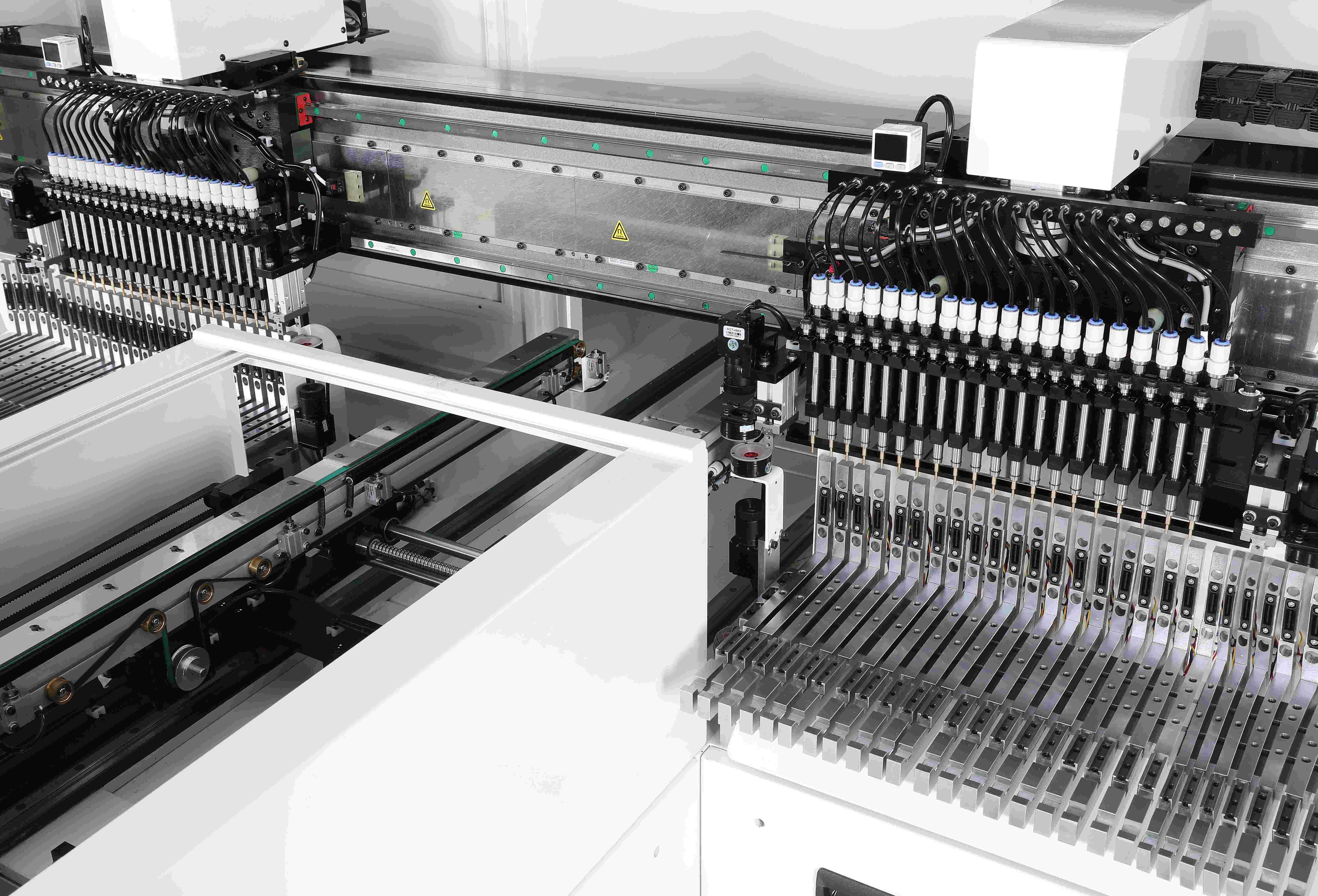

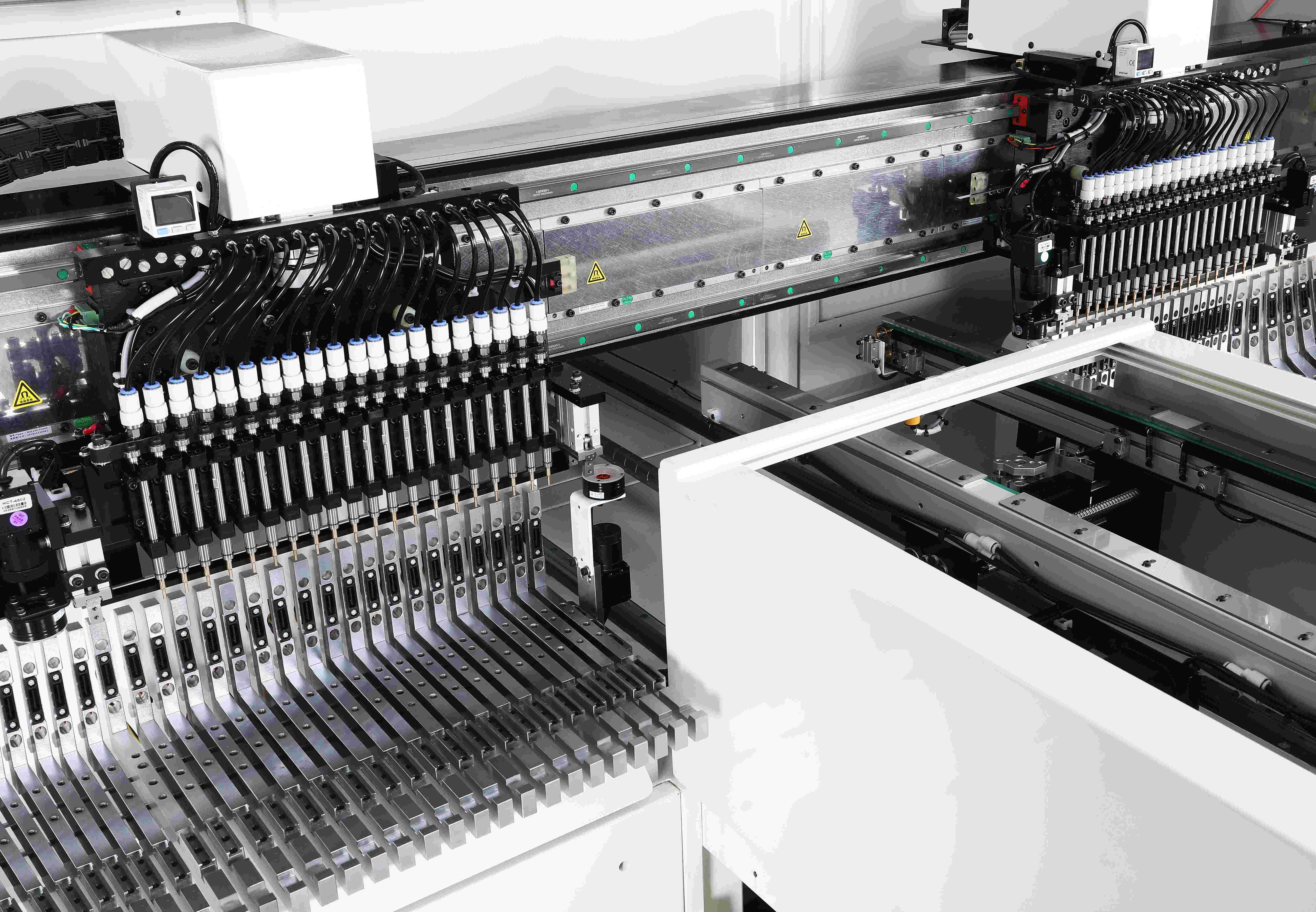

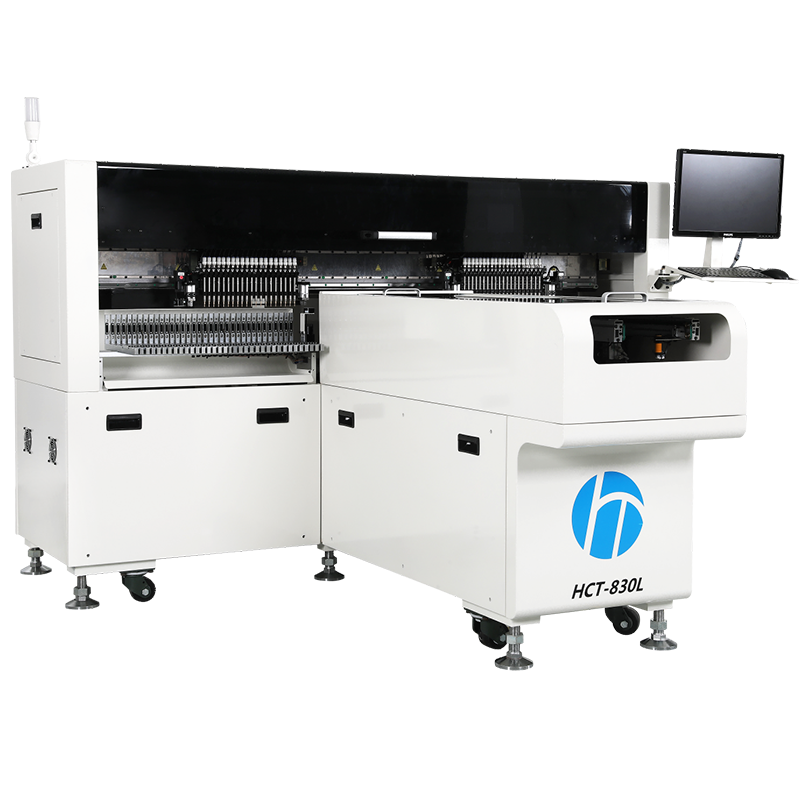

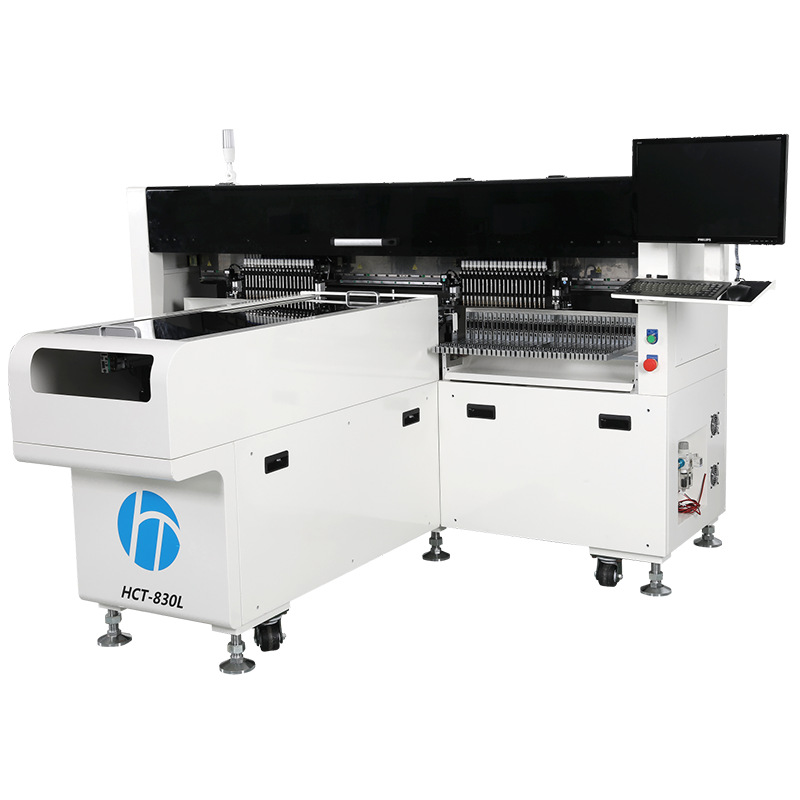

Product
Display - High-Speed LED Chips Mounter HCT-830L
