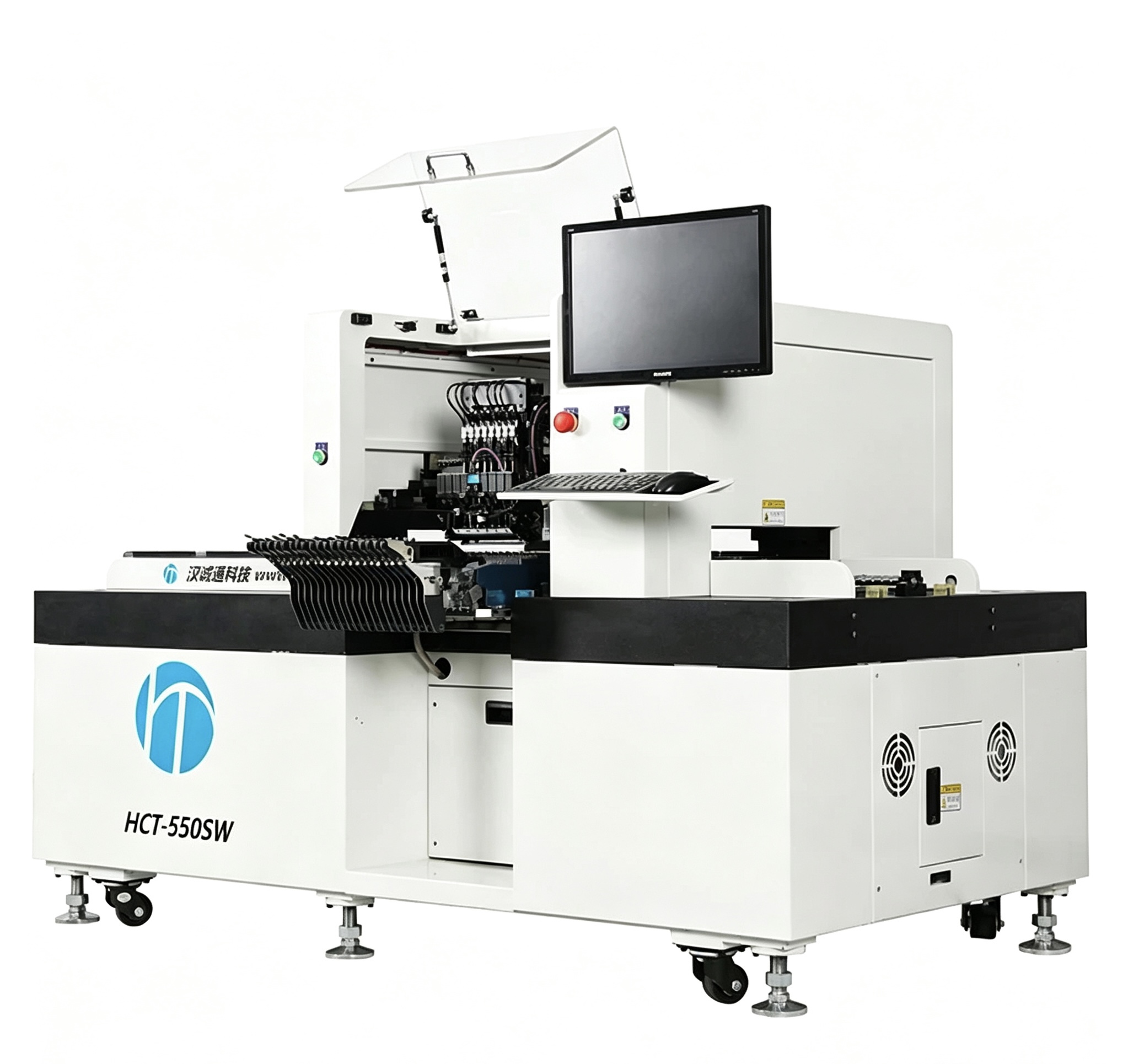

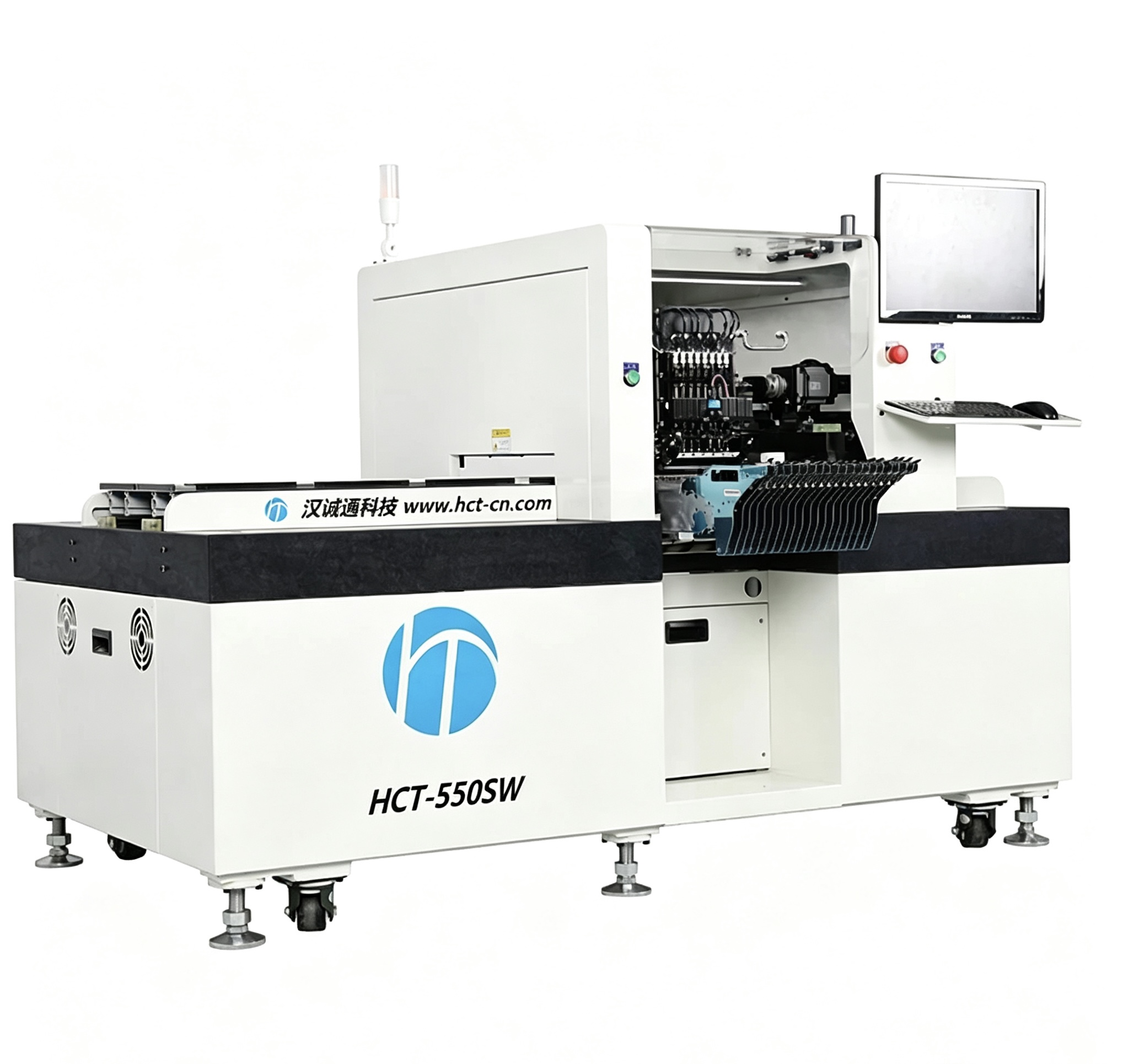

HCT- 550SW Semi Automatic 10 Heads LED Pick and Place Machine
The HCT-550SW offers reliable high-speed and high-precision component placement, equipped with flying vision and MARK alignment system. With 10 spindles, imported ball screw and AC servo drive structure, this equipment delivers stable mounting performance for large-size PCB, LED and SMT mass manufacturing.
Belongs to category:
Semi-auto LED Pick and Place MachineProduct Description
P&P Machine Standard Spare Parts List:
No. Specifications Qty
1.Nozzles *30
2.Hexagon Wrench Tool *1
3.Material Rack *1
Product Features
- Dual Vision Precision Alignment: Equipped with 5 flying vision cameras and 1 MARK camera, it adopts vision alignment plus MARK correction to realize accurate positioning and stable repeat mounting precision.
- High-speed Mounting Capacity: Adopting advanced servo control system, the machine reaches maximum placement speed of 55000CPH under optimal condition, lifting overall productivity for mass LED assembly.
- Wide Component Versatility: Supports components ranging from 0603, 5050 to 7474 as well as high-power LEDs, satisfying multiple types of lighting PCB production requirements.
- Automatic Nozzle Switching: Fitted with 2 groups of automatic nozzle replacement stations to achieve rapid nozzle change, cut changeover downtime and sustain continuous production.
- Flexible PCB Adaptability: Designed with worktable and magnetic fixture platform, supporting offline transmission for various PCB dimensions within the processing range.
- Intelligent Programming System: Supports vision teach-in and coordinate file import, combining mechanical and visual dual positioning to streamline operation and shorten product changeover time.
- Independent R&D Control System: Runs on Windows 7 platform with self-developed software, electrical control and motion control module, guaranteeing steady running and good compatibility.
Specification
|
Model |
HCT-550SW |
|
|
Alignment |
Flying Vision Alignment System |
|
|
（Bottom Fixed Cameras） |
||
|
Number of Spindles |
10 Spindles x 1 Gantry |
|
|
RatedPlacement Speed |
Vision Alignment |
55,000 CPH (Optimum) |
|
Placement Accuracy |
±0.05mm |
|
|
(Based on the standard chips) |
||
|
Mechanical Precision |
±0.02mm |
|
|
Component Range |
Fly Camera |
0603(inch)~5050~7474(mm)， |
|
high-power LEDs |
||
|
Max Height |
H≤16mm(Standard) |
|
|
Board Dimension(mm) |
Minimum |
50(L) x 50(W) |
|
Maximum |
1500(L) x600(W) |
|
|
PCB Thickness |
0.5 - 5.0 |
|
|
Board Handling Method |
Worktable |
|
|
Tape Feeder |
Feeder Type |
Electric Feeder |
|
Feeder Capacity |
26 (12mm Standard) |
|
|
Optional |
8mm, 12mm, 16mm, 24mm, 32mm |
|
|
Utility |
Power |
AC 220V/240V 50Hz, Single phase |
|
Max3KW |
||
|
Air Supply |
0.4-0.6mpa(4-6kgf/cm)100L/min |
|
|
Vacuum Generator for Nozzles |
||
|
Mass |
Approx.1,500kg |
|
|
External Dimension(mm) |
2,000(L) x1,340(W) x 1,370(H) |
|
Product Advantages
1.Excellent Precision Stability: With ±0.02mm mechanical precision and dual visual positioning technology, the machine maintains consistent placement effect, lowers defect rate and improves finished product quality.
2.Efficient Production Capacity: 55000CPH high mounting speed together with 10-spindle placement head improves productivity, ideal for mass production of long-size LED circuit boards.
3.Strong Component Compatibility: Compatible with common SMT chips and various high-power LEDs. Adjustable mounting height meets diverse customized production demands.
4.Stable Independent R&D System: Deploy self-developed software, electrical and motion control modules, featuring stable program operation, low failure rate and simple maintenance.
5.Flexible & User-friendly Operation: Supports automatic nozzle switching and dual programming modes for quick setup. Suitable offline working mode adapts to multiple workshop layout solutions.
6.Premium Servo Hardware Configuration: Imported ball screw matched with AC servo driving system ensures agile response, smooth movement and long-term precision retention under continuous industrial operation.
